Product Detailed Parameters
- Description：LINE FILTER 150A CHASSIS MOUNT
- Series：FN 3100
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：150 A
- Frequency - Operating：DC ~ 60Hz
- Applications：Regenerative Motor Drive
- Approval Agency：CSA, SEMKO, UR
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：300 V
- Voltage - Rated AC (Phase to Phase)：520 V
Download product information
Overview

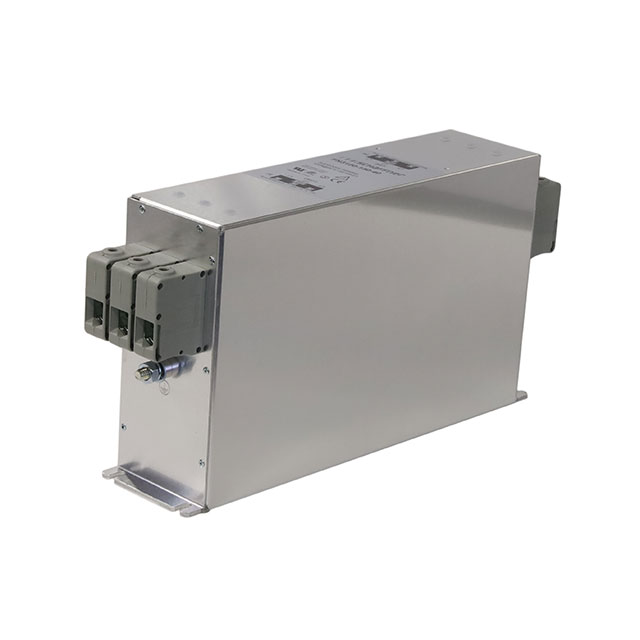

The Schaffner FN3100-150-40 is a three-phase EMC/EMI power line filter designed for chassis mounting. It supports a rated current of 150 A and operates at frequencies up to 60 Hz. The unit features safety terminal block connections and is engineered for high-performance attenuation in industrial environments with significant interference levels.
Feature Summary
- High-performance electromagnetic interference suppression suitable for demanding industrial applications
- Chassis mount construction with safety terminal block connections for secure installation
- Designed for Class B compliance in systems with substantial noise generation
Applications
- Industrial motor drive systems
- Equipment requiring Class B emission compliance
- Applications with significant electromagnetic interference levels
Procurement Notes
Verify the specific voltage ratings and physical dimensions against your system requirements before procurement. Confirm that the safety terminal block interface matches your wiring infrastructure. Ensure the chassis mounting provisions align with your enclosure design specifications to guarantee proper mechanical fit and electrical grounding.
Selection Notes
Select this component when high current capacity and robust EMI attenuation are required for three-phase AC power lines. Consider the chassis mount form factor and terminal block termination style during integration planning. Evaluate the operating temperature range and certification requirements to ensure compatibility with your target market regulations and environmental conditions.
Part Context
This component belongs to the Schaffner FN3100 series, which specializes in high-power three-phase filters. These units are typically utilized in heavy-duty industrial settings where standard filters may not provide sufficient noise reduction or current handling capability for sensitive electronic loads.
Replacement Considerations
Publicly confirmed substitute part numbers for this specific model were not identified in available documentation. Verify compatibility carefully if considering alternative manufacturers or different series within the same product family.
