Product Detailed Parameters

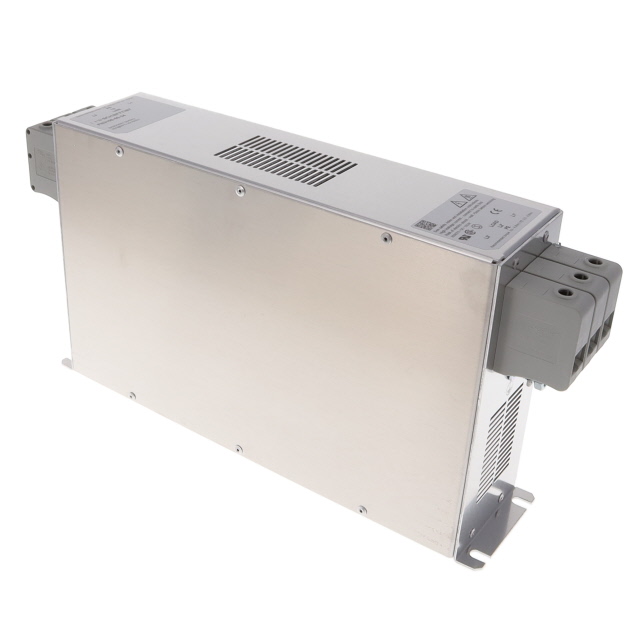

- Description：LINE FILTER 50A CHASSIS MOUNT
- Series：FN 3100
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：50 A
- Frequency - Operating：DC ~ 60Hz
- Applications：Regenerative Motor Drive
- Approval Agency：CSA, SEMKO, UR
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：300 V
- Voltage - Rated AC (Phase to Phase)：520 V
Download product information
Overview
The Schaffner FN3100-50-34 is a three-phase power line filter designed for industrial motor drive applications. It features a rated voltage of 520VAC and a continuous current rating of 50A. The unit provides significant interference suppression suitable for environments with high electromagnetic noise levels.
Feature Summary
- Engineered for high-performance electromagnetic interference suppression in demanding industrial settings
- Optimized for integration with multi-axis machine tools and complex motor drive systems
Applications
- Industrial motor drive systems
- Machine tool applications with multiple driving axes
- Environments requiring significant interference level mitigation
Procurement Notes
Verify the specific part number against official TE Connectivity / Schaffner documentation to confirm electrical ratings and physical dimensions. Ensure compatibility with the target system's voltage and current requirements before procurement. Cross-reference datasheets for installation guidelines and compliance certifications.
Selection Notes
Select this component when high-level interference suppression is required for three-phase motor drives. Confirm that the 520VAC and 50A ratings align with the application's operational parameters. Evaluate space constraints and mounting requirements relative to the filter's physical specifications.
Part Context
This component belongs to the FN3100 series, which specializes in power line filters for industrial use. The series addresses challenges associated with significant electromagnetic interference generated by modern power electronics and motor control equipment.
FAQ
What is the primary application environment for this filter?
It is primarily designed for industrial motor drive applications, particularly those involving machine tools with up to eight driving axes.
What are the key electrical ratings?
The filter has a rated voltage of 520VAC and a continuous current capacity of 50A.
