FN3100-80-35

Overview

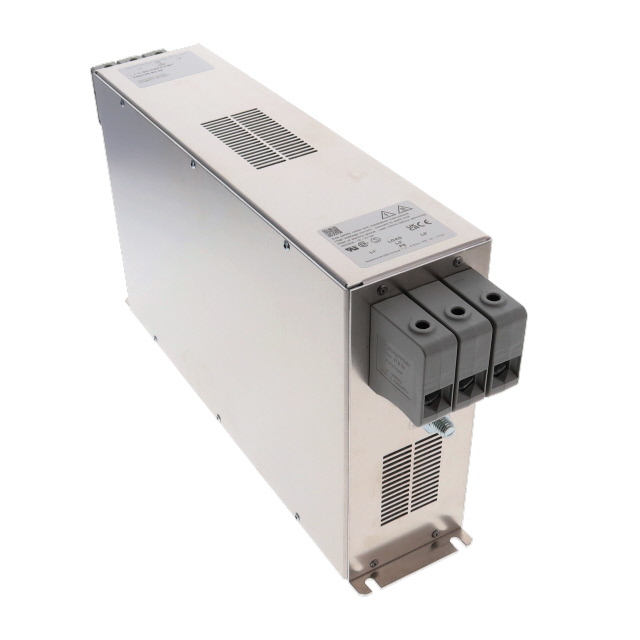

The Schaffner FN3100-80-35 is a three-phase (Delta) EMC/EMI line filter designed for chassis mounting. It supports a rated current of 80 A and operates within a frequency range of DC to 60 Hz. The unit features a single-stage configuration with terminal block termination. Certified by CSA, SEMKO, and UR, it functions reliably in temperatures between -25°C and 100°C.

Feature Summary

• Provides electromagnetic interference suppression for three-phase Delta power systems
• Engineered specifically for regenerative motor drive applications
• Features robust chassis mount construction for industrial integration

Applications

• Regenerative motor drives
• Three-phase AC power distribution systems
• Industrial machinery requiring EMI filtering

Procurement Notes

Verify the specific pinout and terminal block compatibility with existing panel designs before procurement. Confirm that the operating environment temperature remains within the specified -25°C to 100°C range. Ensure the input voltage does not exceed the component's maximum ratings to maintain certification validity and operational safety.

Selection Notes

Select this model when a single-stage solution is sufficient for Delta configurations. Consider the 80 A current rating against peak load requirements. Evaluate the terminal block interface against available wiring methods. Verify that the physical dimensions fit the designated chassis space.

Part Context

This component belongs to the FN3100 series of AC/DC chassis filters manufactured by TE Connectivity Schaffner. The series focuses on providing compact EMC solutions for industrial environments. The FN3100-80-35 variant specifically addresses high-current three-phase applications requiring reliable noise attenuation.

Replacement Considerations

The FN3100-80-35 is an active substitute for the FN3110-80-35, offering equivalent electrical and mechanical performance while maintaining current product status.
