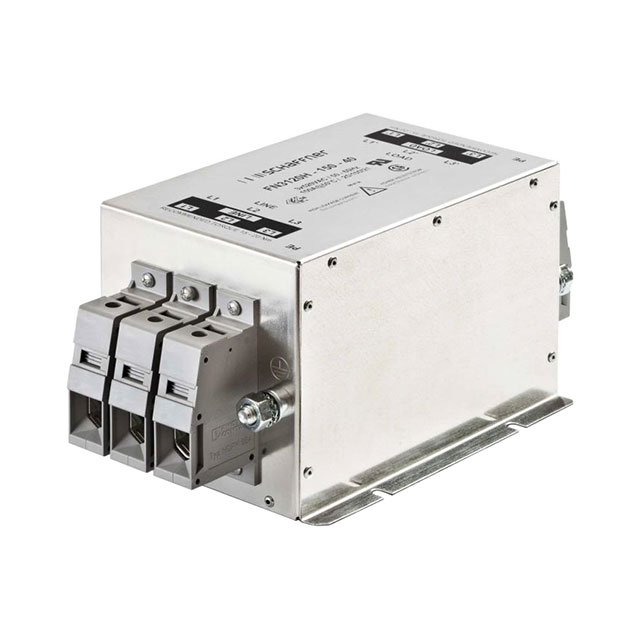

FN3120H-150-40

$713.15

Description：LINE FILTER 150A CHASSIS MOUNT
Series：FN 3120
Mfr：Schaffner EMC Inc.
Package：Tray

SKU:4d9612590ea7 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 150A CHASSIS MOUNT
Series：FN 3120
Mfr：Schaffner EMC Inc.
Package：Tray
Filter Type：Three Phase (Delta)
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：150 A
Frequency - Operating：DC ~ 60Hz
Applications：Regenerative Motor Drive
Approval Agency：CSA, ENEC, UR
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：300 V
Voltage - Rated AC (Phase to Phase)：520 V

Download product information

FN3120H-150-40

Overview

The Schaffner FN3120H-150-40 is a high-performance three-phase EMC/RFI power line filter designed for industrial motor drive applications. It features a rated current of 150 A and a voltage rating of 520 VAC. The unit utilizes chassis mounting with bolted terminals and operates within a temperature range of -40°C to +100°C. This filter provides significant interference suppression for environments with extremely high noise levels, ensuring compliance with electromagnetic compatibility standards in demanding industrial settings.

Feature Summary

Engineered for high-noise industrial motor drive environments
Provides robust electromagnetic interference suppression
Supports high continuous current loads at elevated voltages

Applications

Industrial motor drive systems
High-noise manufacturing equipment
Heavy-duty power distribution units

Procurement Notes

Verify the specific suffix codes against official Schaffner documentation to confirm terminal type and mounting configuration. Ensure the procurement channel sources directly from authorized distributors or TE Connectivity to guarantee component authenticity and adherence to RoHS3 specifications. Cross-reference the part number with the latest datasheet revisions to confirm mechanical dimensions and electrical ratings match the design requirements.

Selection Notes

Select this model when application requirements demand high-current handling capabilities alongside superior attenuation performance. The chassis mount style is suitable for integration into larger control cabinets or drive enclosures. Consider the thermal management requirements associated with 150 A operation and verify that the physical footprint aligns with available panel space in the target assembly.

Part Context

This component belongs to the FN 3120 H series of power line filters manufactured by Schaffner EMC Inc., now part of TE Connectivity. The series is specifically engineered for three-phase AC applications requiring high reliability and durability. The product line focuses on mitigating conducted emissions in sectors where standard filters fail to meet stringent regulatory limits due to intense operational noise.
