FN3120H-80-35

$525.22

Description：LINE FILTER 80A CHASSIS MOUNT
Series：FN 3120
Mfr：Schaffner EMC Inc.
Package：Tray

SKU:5f484acfc70e Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 80A CHASSIS MOUNT
Series：FN 3120
Mfr：Schaffner EMC Inc.
Package：Tray
Filter Type：Three Phase (Delta)
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：80 A
Frequency - Operating：DC ~ 60Hz
Applications：Regenerative Motor Drive
Approval Agency：CSA, ENEC, UR
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：300 V
Voltage - Rated AC (Phase to Phase)：520 V

Download product information

FN3120H-80-35

Overview

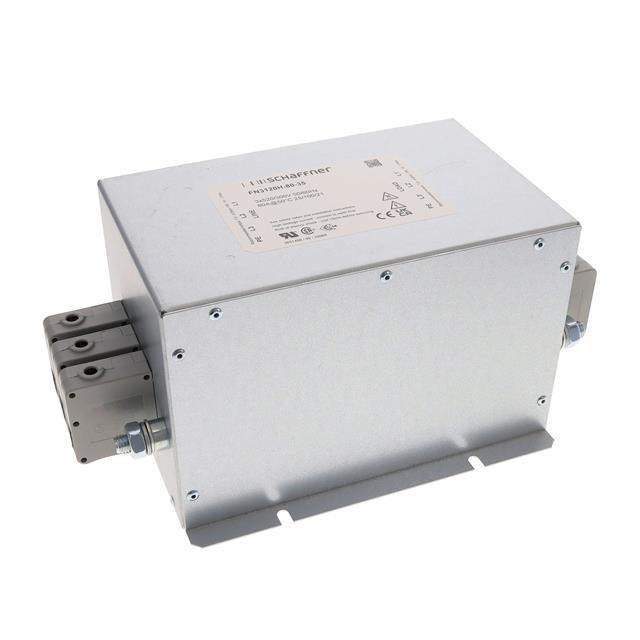

The Schaffner FN3120H-80-35 is a high-performance three-phase EMC/RFI filter designed for industrial motor drive applications. It features a rated current of 80 A and operates at voltages up to 480 VAC. The unit utilizes safety terminal blocks for secure connections and supports chassis mounting. Designed for environments with extremely high noise levels, it provides sufficient interference suppression for demanding drive systems.

Feature Summary

Engineered for industrial motor drive applications characterized by extremely high noise levels
Provides robust interference suppression suitable for demanding drive systems
Utilizes safety terminal blocks for reliable electrical connections

Applications

Industrial motor drive systems
Applications requiring high-performance EMC/RFI filtering
Environments with extremely high noise levels

Procurement Notes

Verify the specific part number against official Schaffner documentation to ensure compatibility with your system's voltage and current requirements. Confirm that the safety terminal block interface matches your wiring infrastructure. Check for any recent product change notices or datasheet updates regarding technical specifications before finalizing procurement.

Selection Notes

Select this component when standard filters are insufficient for high-noise industrial drive environments. Ensure the 80 A rating aligns with the maximum load current. Verify that the chassis mounting style fits the available enclosure space. Confirm that the safety terminal block connection method is compatible with the installation site's wiring practices.

Part Context

This model belongs to the FN 3120 H series, which is specifically developed for high-performance EMC/RFI filtering in industrial settings. The series addresses the challenges of severe electromagnetic interference generated by modern power electronics and motor drives.
