FN3256H-36-33-R69

$196.18

Description：LINE FILTER 36A CHASSIS MOUNT
Series：FN 3256
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:2b3195393b74 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 36A CHASSIS MOUNT
Series：FN 3256
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Three Phase (Wye)
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：36 A
Frequency - Operating：DC ~ 60Hz
Applications：General Purpose
Approval Agency：CE, CSA, ENEC, UKCA, UR
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：300 V
Voltage - Rated AC (Phase to Phase)：520 V

Download product information

FN3256H-36-33-R69

Overview

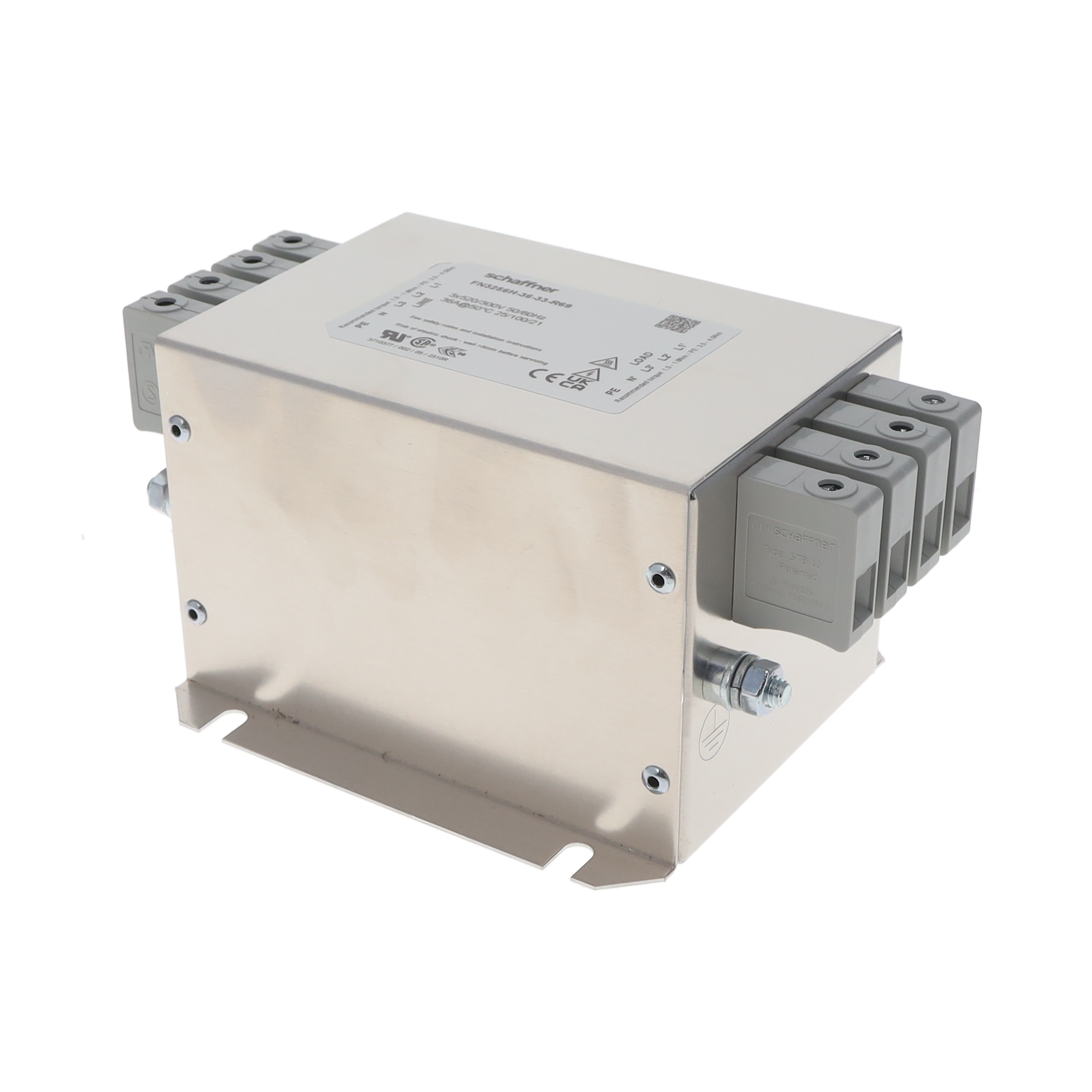

The Schaffner FN3256H-36-33-R69 is a three-phase and neutral EMC/EMI line filter rated for 36 A current and 520 VAC voltage. It operates at frequencies from DC to 60 Hz and features chassis mounting with terminal block termination. The unit has a single-stage configuration, low leakage current of 600 uA, and an operating temperature range of -25°C to +100°C. Dimensions are 180 mm in length and 85 mm in height.

Feature Summary

Combines high attenuation performance with low leakage current
Features solid, touch-safe terminal blocks for secure connections
Designed for three-phase and neutral applications

Applications

Industrial power conditioning systems
EMC compliance for three-phase machinery
Power line filtering in industrial environments

Procurement Notes

Verify the specific suffix R69 against official datasheets to confirm packaging or variant details. Ensure compatibility with 520VAC systems and 36A load requirements. Confirm terminal block specifications match installation needs. Check for RoHS compliance status if required by project standards.

Selection Notes

Select this model for applications requiring robust three-phase filtering with low leakage. The 36A rating suits moderate industrial loads. Terminal block termination simplifies wiring compared to screw terminals. Verify space constraints against the 180mm length dimension.

Part Context

Part of the FN3256 series, designed for general-purpose power line filtering. Manufactured by TE Connectivity Schaffner, known for EMI/EMC solutions. The series emphasizes safety and performance in industrial settings.

Replacement Considerations

FN3256H-36-33 is listed as a potential replacement or equivalent for discontinued models like FN356-36-33. Verify electrical ratings and physical dimensions before substitution.
