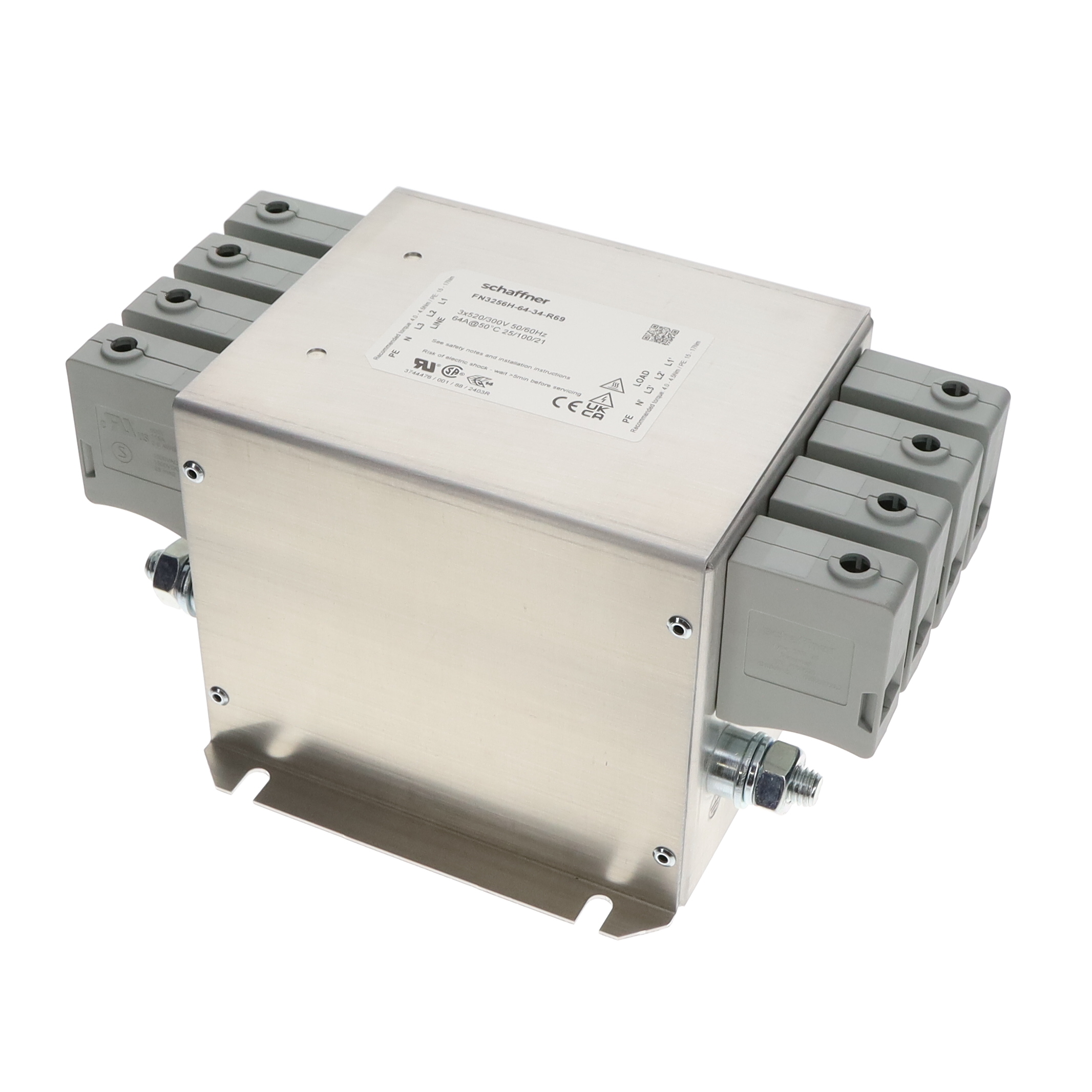

FN3256H-64-34-R69

$285.09

Description：LINE FILTER 64A CHASSIS MOUNT
Series：FN 3256
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:1365be367adf Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 64A CHASSIS MOUNT
Series：FN 3256
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Three Phase (Wye)
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：64 A
Frequency - Operating：DC ~ 60Hz
Applications：General Purpose
Approval Agency：CE, CSA, ENEC, UKCA, UR
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：300 V
Voltage - Rated AC (Phase to Phase)：520 V

Download product information

FN3256H-64-34-R69

Overview

The FN3256H-64-34-R69 is a three-phase and neutral power line filter manufactured by TE Connectivity Schaffner. It features a chassis mount design with terminal block termination. The unit supports a voltage rating of 520 VAC and a current rating of 64 A. Operating within a frequency range of 0 Hz to 60 Hz, it maintains a leakage current of 600 uA. Physical dimensions are 218 mm in length, 143 mm in width, and 115 mm in height, weighing 2.3 kg. It functions effectively between -25°C and +100°C.

Feature Summary

Provides electromagnetic interference suppression for three-phase systems including the neutral conductor.
Engineered for robust chassis mounting using terminal block connections.
Designed for stable operation across a wide temperature range up to 100°C.

Applications

Industrial machinery power conditioning
Three-phase motor drive protection
Heavy-duty manufacturing equipment filtering

Procurement Notes

Verify the specific suffix R69 against official datasheets to confirm packaging or compliance variations. Ensure the 64 A current rating matches system requirements. Confirm terminal block compatibility with existing wiring infrastructure. Validate that the 520 VAC rating aligns with the operational voltage environment.

Selection Notes

Select this model when high current capacity is required for three-phase applications. The chassis mount style suits enclosed industrial environments. Verify that the physical dimensions fit available panel space. Ensure the terminal block interface matches the connection method used in the assembly.

Part Context

This component belongs to the FN3256H series of power line filters from Schaffner. The series is designed for demanding industrial EMC/EMI applications. It provides reliable noise attenuation for sensitive electronic loads connected to three-phase power sources.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult manufacturer resources for direct equivalents if sourcing issues arise.
