Product Detailed Parameters
- Description：LINE FILTER 80A CHASSIS MOUNT
- Series：FN 3256
- Mfr：Schaffner EMC Inc.
- Package：Bulk
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：80 A
- Frequency - Operating：DC ~ 60Hz
- Applications：General Purpose
- Approval Agency：CE, CSA, ENEC, UKCA, UR
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：300 V
- Voltage - Rated AC (Phase to Phase)：520 V
Download product information
Overview

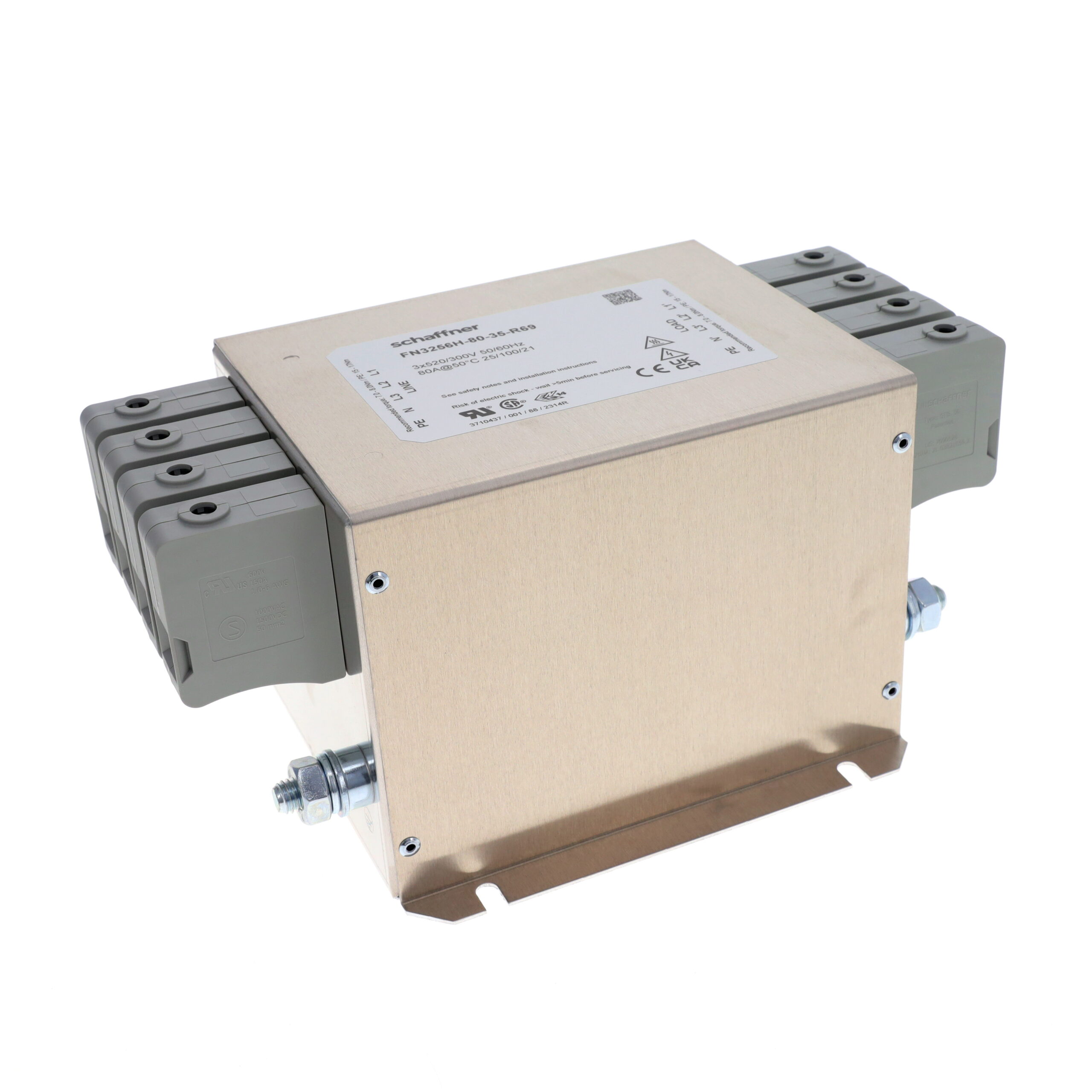

The FN3256H-80-35-R69 is a three-phase and neutral line filter manufactured by Schaffner EMC Inc. It features a rated AC voltage of 520 VAC and a continuous current rating of 80 A. Designed for chassis mounting, the unit utilizes terminal block termination. The filter operates within a frequency range of DC to 60 Hz and supports an operating temperature range from -25°C to +100°C. Key electrical specifications include a maximum leakage current of 600 µA. The component complies with UL, CSA, and IEC/EN standards.
Feature Summary
- Provides high attenuation performance for industrial machinery applications
- Ensures low leakage current operation for safety compliance
- Compact design suitable for space-constrained chassis mounting
Applications
- Industrial machinery power conditioning
- Three-phase equipment EMI suppression
- General purpose EMC filtering in manufacturing environments
Procurement Notes
Verify the complete part number including the suffix against official Schaffner documentation to ensure correct configuration. Confirm that the required certification marks such as UL or CSA are explicitly listed for the specific variant. Cross-reference the terminal block type and physical dimensions with the mechanical drawings prior to integration into the final assembly design.
Selection Notes
Select this model when an 80 A capacity is required for three-phase systems operating at 520 VAC. Ensure the application environment falls within the specified -25°C to +100°C thermal limits. Verify that the chassis mounting style and terminal block connections align with the system's mechanical and wiring infrastructure requirements before procurement.
Part Context
This component belongs to the FN3256 series, which comprises compact three-phase filters designed for industrial use. The series emphasizes high attenuation and low leakage current characteristics. The FN3256H variant specifically addresses higher current demands while maintaining robust electromagnetic compatibility performance for demanding power electronics applications.
Replacement Considerations
Consult official Schaffner substitution guides for verified equivalents. Do not assume cross-compatibility with other series without confirming electrical ratings and mechanical fit.
