FN3258-130-35

Overview

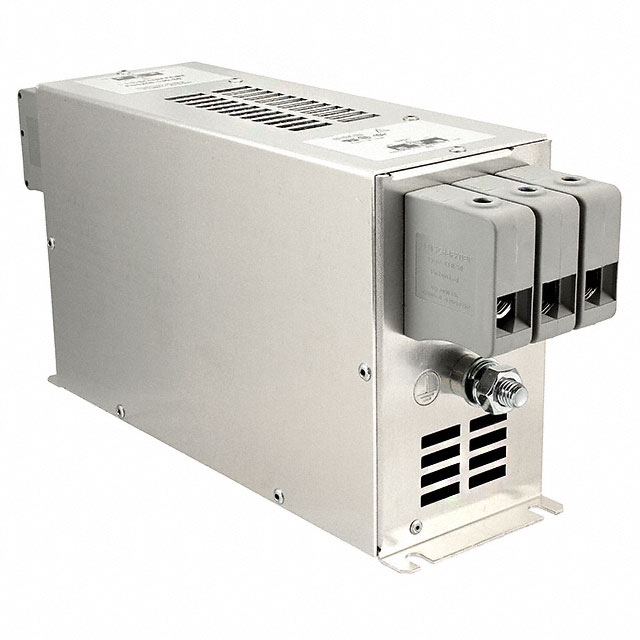

The FN3258-130-35 is a three-phase EMC/RFI power line filter from the Schaffner FN3258 series, manufactured by TE Connectivity. It features a chassis mount design with terminal block termination for secure electrical connections. The unit supports a rated voltage of 480 VAC and handles a continuous current of 130 A. Operating within a frequency range of 0 Hz to 60 Hz, it maintains a low leakage current of 4.3 mA. The filter is certified under UL, CSA, and IEC/EN standards, ensuring compliance with international safety regulations.

Feature Summary

• Ultra-compact and slim physical design optimized for space-constrained motor drive applications
• Single-stage filtering architecture providing effective EMI/RFI suppression
• Robust chassis mounting configuration with terminal block interface

Applications

• Motor drive systems requiring compact EMC solutions
• Industrial power distribution panels
• Three-phase equipment sensitive to electromagnetic interference

Procurement Notes

Verify the specific part number FN3258-130-35 against official TE Connectivity/Schaffner documentation to confirm technical specifications. Ensure compatibility with existing chassis mounting hardware and terminal block wiring requirements. Cross-reference certification marks such as UL and CSA with local regulatory needs before procurement.

Selection Notes

Select this component when high current capacity at 130 A is required in a minimal footprint. The terminal block interface suits applications needing robust mechanical connections. Verify that the 480 VAC rating aligns with the system voltage and that the 0-60 Hz frequency range matches the operational environment.

Part Context

This model belongs to the FN3258 series, designed specifically for ultra-compact EMC filtering in industrial environments. The series emphasizes slim profiles to facilitate integration into dense panel layouts while maintaining high current handling capabilities for demanding three-phase loads.

Replacement Considerations

Consult official manufacturer substitution guides for verified equivalents. Generic cross-references may not match the specific terminal block configuration or compact dimensions required for direct replacement in constrained spaces.
