FN3258-16-45

Overview

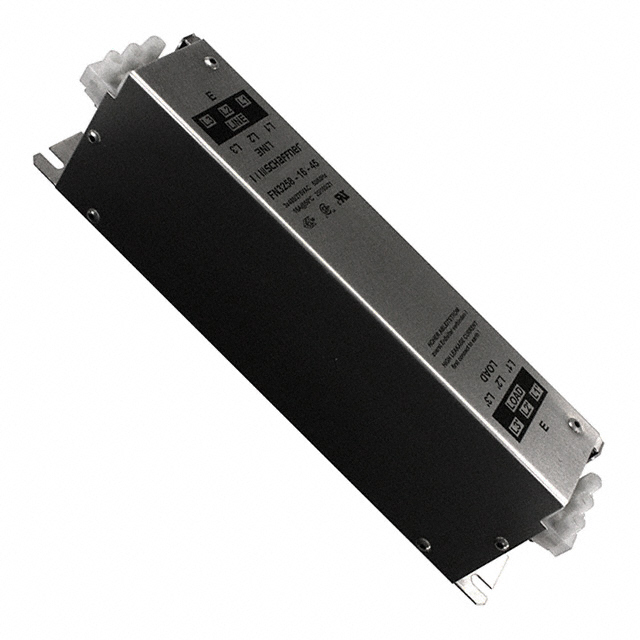

The Schaffner FN3258-16-45 is a three-phase ultra-compact EMC/RFI power line filter designed for chassis mounting. It features wire termination and operates at a rated voltage of 440 VAC with a current rating of 16 A. The unit functions at 50 Hz, has a leakage current of 33 mA, and weighs 800 g. This component belongs to the FN 3258 series.

Feature Summary

• Three-phase ultra-compact EMC/RFI filtering design
• Chassis mount installation style
• Wire termination configuration

Applications

• Industrial equipment electromagnetic compatibility protection
• Power conditioning systems requiring three-phase filtering
• Electrical enclosures needing compact EMI suppression

Procurement Notes

Verify part number accuracy as this specific model is listed as discontinued or limited supply in public records. Confirm availability through authorized TE Connectivity / Schaffner distributors. Check for valid replacement alternatives if new production units are unavailable. Ensure technical specifications match system requirements before ordering.

Selection Notes

Select this filter for applications requiring three-phase EMC suppression with wire termination. Verify that the 440 VAC rating and 16 A current capacity suit the load. Consider chassis mounting constraints and physical dimensions. Note that alternative models may be required due to discontinuation status.

Part Context

This component is part of the FN 3258 series manufactured by TE Connectivity / Schaffner. The series includes various three-phase filters with different current ratings and termination styles. The FN3258-16-45 specifically utilizes wire connections and is classified as an ultra-compact EMC/RFI filter.

Replacement Considerations

Public sources indicate this part is discontinued. No confirmed substitute part numbers are provided in the available documentation. Consult manufacturer catalogs for equivalent three-phase filters with similar ratings.
