FN3258-55-34

Overview

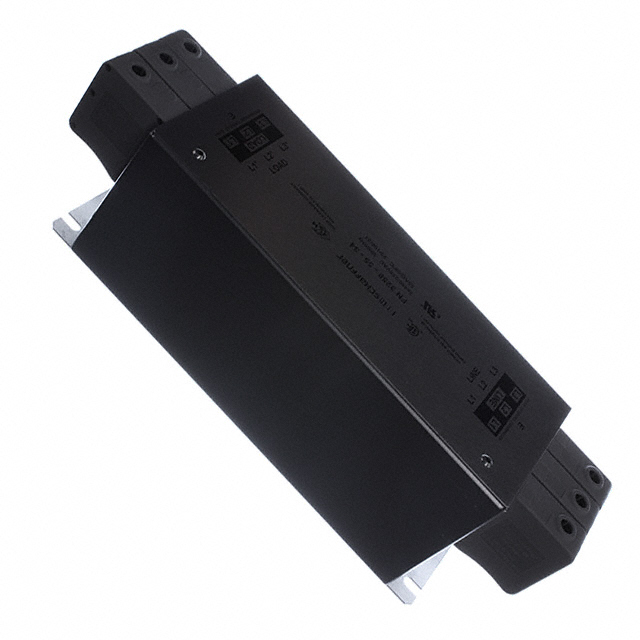

The Schaffner FN3258-55-34 is a three-phase EMC/RFI power line filter designed for nominal 480 VAC operation at frequencies up to 60 Hz. It features a chassis mount configuration with terminal block termination, supporting a rated current of 55 A. The unit exhibits a leakage current of 4.3 mA and measures 90 mm in height, 220 mm in length, and 85 mm in width. Certified under UL, CSA, and IEC/EN standards, it operates within a temperature range of -25°C to +100°C.

Feature Summary

• Provides robust electromagnetic interference mitigation for industrial automation and climate control systems
• Features an ultra-compact design suitable for space-constrained equipment enclosures
• Utilizes terminal block connections for secure and reliable power line interfacing

Applications

• Industrial automation machinery
• Climate control systems
• Power supply units requiring EMI suppression

Procurement Notes

Verify the specific part number against official TE Connectivity or Schaffner documentation to confirm compatibility with your system requirements. Ensure that the terminal block interface matches your wiring infrastructure. Cross-reference certification marks such as UL, CSA, and IEC/EN with local regulatory standards before integration. Confirm thermal management capabilities align with the specified operating temperature range.

Selection Notes

Select this component when a three-phase filter is required for 480 VAC applications with a continuous current rating near 55 A. The terminal block termination style dictates the connection method, differing from screw or stud options. Consider the physical dimensions and chassis mounting requirements during mechanical design. Evaluate leakage current specifications against safety grounding constraints in sensitive environments.

Part Context

This model belongs to the FN3258 series, which offers ultra-compact three-phase EMC filters. The series supports various current ratings while maintaining consistent voltage ratings and mounting styles. The FN3258-55-34 specifically addresses mid-range current needs within this product family, providing standardized performance metrics for industrial power filtering applications.

Replacement Considerations

FN3258-55-33 is listed as a potential substitute in public records.
