FN3268-130-35

Overview

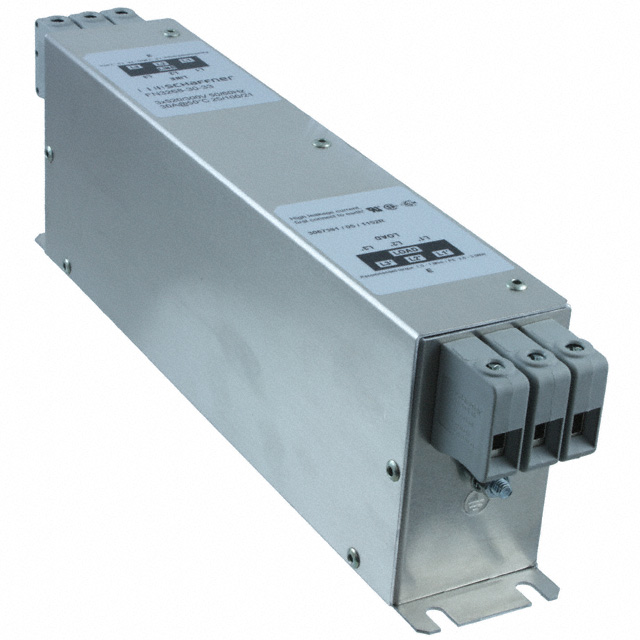

The Schaffner FN3268-130-35 is a three-phase EMC/EMI power line filter designed for chassis mounting. It features a rated current of 130 A, with a maximum rating of 142.4 A. The device operates within a voltage range of 300 to 520 V. Key electrical specifications include a leakage current of 14.2 mA and an attenuation value of 75 dB. The unit weighs 38.0 kg and has dimensions associated with the -35 suffix.

Feature Summary

• Designed for installations requiring residual current monitoring capabilities
• Provides electromagnetic compatibility filtering for three-phase power systems
• Constructed for robust chassis mounting applications

Applications

• Industrial power regeneration units
• Three-phase power supply systems
• Battery charger infrastructure

Procurement Notes

Verify the specific datasheet version corresponding to the -35 suffix to confirm physical dimensions and weight specifications. Ensure that the installation environment supports the 38.0 kg mass and chassis mounting requirements. Confirm compliance with local safety standards for high-current three-phase filters before deployment.

Selection Notes

Select this model when a 130 A continuous current rating is required for three-phase lines. The low leakage current specification makes it suitable for sensitive residual current devices. Consider the chassis mount form factor and significant weight when designing the mechanical support structure for the equipment enclosure.

Part Context

This component belongs to the FN3268 series of ultra-compact three-phase filters from Schaffner. The series addresses EMC/EMI suppression in industrial power electronics. The specific part number indicates the current rating and physical configuration variant within the product family.

Replacement Considerations

Consult official Schaffner documentation for direct cross-references. Verify that substitute models maintain the 130 A rating and compatible leakage current limits for RCD compatibility.
