Product Detailed Parameters
- Description：LINE FILTER 16A CHASSIS MOUNT
- Series：FN 3268
- Mfr：Schaffner EMC Inc.
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：16 A
- Frequency - Operating：DC ~ 60Hz
- Applications：General Purpose
- Approval Agency：CSA, ENEC, UR
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：300 V
- Voltage - Rated AC (Phase to Phase)：520 V
Download product information
Overview

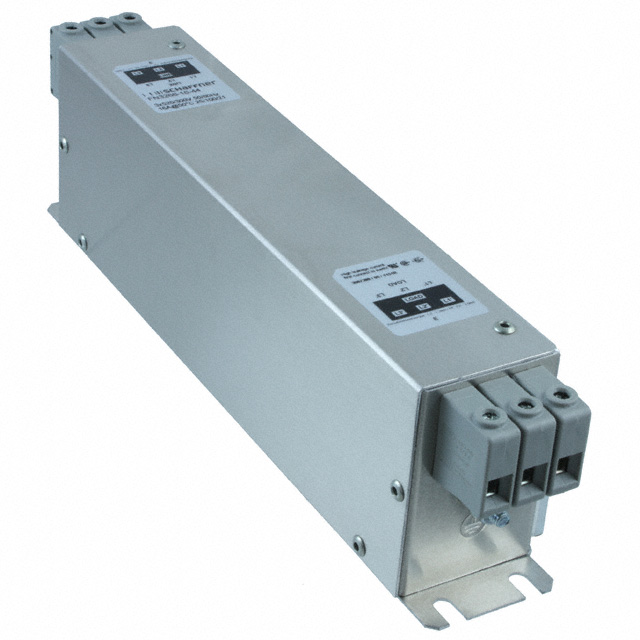

The FN3268-16-44 is a three-phase power line filter from the Schaffner FN3268 series, designed for electromagnetic interference suppression. It features a rated current of 16 A and operates at voltages up to 520 VAC with a frequency range of DC to 60 Hz. The unit utilizes chassis mounting with terminal block connections and exhibits a leakage current of 4.5 mA. Its physical dimensions are 160 mm in length, 40 mm in width, and 70 mm in height, weighing approximately 800 g.
Feature Summary
- Provides effective attenuation of unwanted electromagnetic interference signals within power distribution networks
- Engineered specifically to suppress undesirable leakage currents in drive technology applications
- Constructed with robust components suitable for continuous operation in industrial environments
Applications
- Industrial automation systems requiring EMI mitigation
- Drive technology installations needing low leakage current performance
- Climate control systems utilizing three-phase power supplies
Procurement Notes
Verify the specific suffix against official datasheets to confirm exact electrical ratings and terminal configurations. Ensure compatibility with existing chassis mounting hardware and terminal block specifications before integration. Cross-reference manufacturer documentation for any recent design changes or compliance updates.
Selection Notes
Select this model when a three-phase filter with a 16 A rating and 4.5 mA leakage current is required. Consider the FN3268 series for applications demanding slim-line form factors and high voltage tolerance up to 520 VAC. Evaluate thermal management requirements based on the specified operating temperature range.
Part Context
This component belongs to the FN3268 series of low leakage current EMC filters manufactured by TE Connectivity / Schaffner. The series is characterized by its compact design and specialized capability to handle drive technology applications where standard filters may cause excessive leakage issues.
Replacement Considerations
Consult official substitution guides for equivalent models within the FN3268 series or compatible Schaffner EMC filter lines. Verify that alternative parts match the 16 A current rating, 520 VAC voltage limit, and 4.5 mA leakage current specifications.
