Product Detailed Parameters
- Description：LINE FILTER 180A CHASSIS MOUNT
- Series：FN 3268
- Mfr：Schaffner EMC Inc.
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：180 A
- Frequency - Operating：DC ~ 60Hz
- Applications：General Purpose
- Approval Agency：CSA, ENEC, UR
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：300 V
- Voltage - Rated AC (Phase to Phase)：520 V
Download product information
Overview

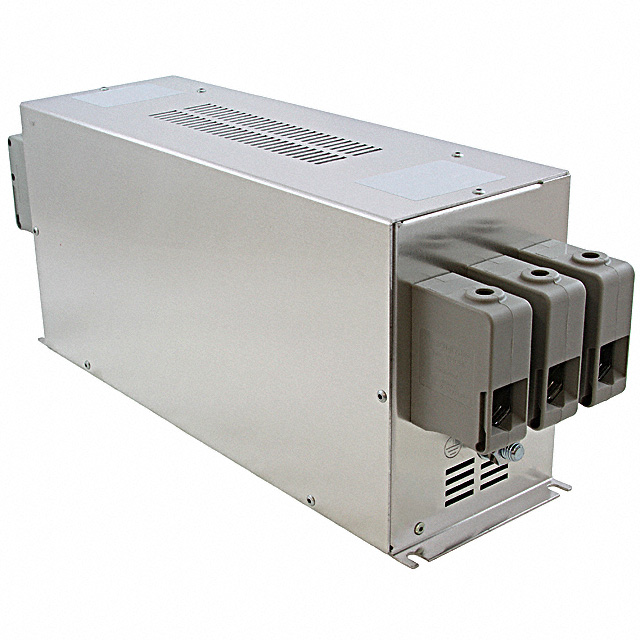

The FN3268-180-40 is a three-phase EMC/RFI power line filter manufactured by TE Connectivity / Schaffner. It features a rated voltage of 520 VAC and a continuous current rating of 180 A. The unit utilizes chassis mount installation with terminal block termination. Physical dimensions are 350 mm in length, 120 mm in width, and 170 mm in height, with an operating temperature range from -25 C to +100 C. Leakage current is specified at 17.4 mA.
Feature Summary
- Provides electromagnetic interference suppression for three-phase power systems
- Designed for high-current industrial applications up to 180 A
- Constructed for secure chassis mounting via terminal blocks
Applications
- Industrial regeneration units
- High-power motor drive systems
- Large-scale industrial machinery power conditioning
Procurement Notes
Verify the specific suffix against official datasheets to confirm exact electrical ratings and physical configuration. Confirm compliance certifications such as UL, CSA, and IEC/EN requirements prior to integration. Ensure thermal management aligns with the maximum operating temperature limit of +100 C during system design.
Selection Notes
Select this component when high current capacity of 180 A is required for three-phase filtering. Evaluate chassis space constraints against the 350x120x170 mm footprint. Verify that terminal block connections match existing wiring infrastructure and that leakage current specifications meet safety standards for the intended application environment.
Part Context
This model belongs to the FN3268 series of power line filters. The series is characterized by robust construction for demanding industrial environments. Components in this family typically support high current loads and utilize standardized mounting configurations for easy integration into larger power distribution panels.
Replacement Considerations
Cross-reference part number alias 810321-SF for equivalent identification. Verify compatibility with existing mounting hardware and terminal block interfaces before substituting.
