FN3268-30-33

$240.20

Description：LINE FILTER 30A CHASSIS MOUNT
Series：FN 3268
Mfr：Schaffner EMC Inc.
Package：Box

SKU:e0c4414ee1b9 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 30A CHASSIS MOUNT
Series：FN 3268
Mfr：Schaffner EMC Inc.
Package：Box
Filter Type：Three Phase (Delta)
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：30 A
Frequency - Operating：DC ~ 60Hz
Applications：General Purpose
Approval Agency：CSA, ENEC, UR
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：300 V
Voltage - Rated AC (Phase to Phase)：520 V

Download product information

FN3268-30-33

Overview

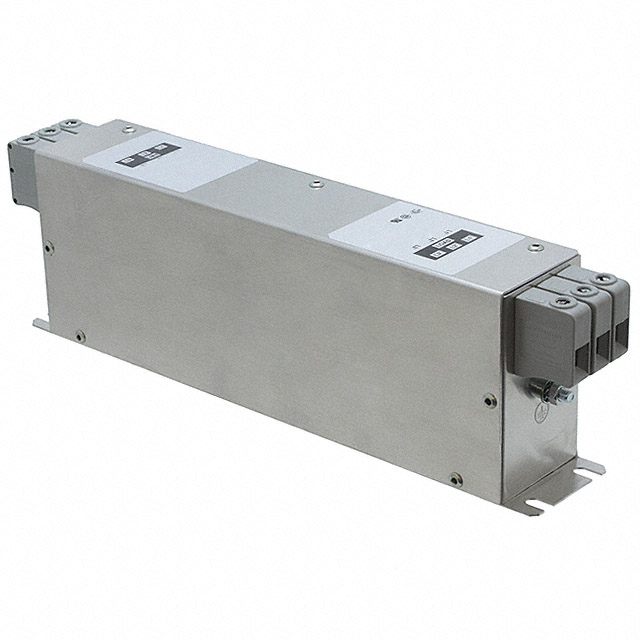

The FN3268-30-33 is a three-phase EMC/RFI power line filter manufactured by TE Connectivity Schaffner. It supports a rated voltage of 520 VAC and a continuous current of 30 A at frequencies from 0 Hz to 60 Hz. The unit features terminal block input and output connections for chassis mounting. Key electrical specifications include a leakage current of 4.6 mA and compliance with UL, CSA, and IEC/EN standards. Physical dimensions are 240 mm in length, 50 mm in width, and 85 mm in height, with an operating temperature range of -25°C to +100°C.

Feature Summary

Provides single-stage electromagnetic interference suppression for three-phase delta systems
Utilizes terminal block interfaces for secure electrical connections
Designed for direct chassis mounting applications

Applications

Industrial machinery power conditioning
Three-phase motor drive protection
Regeneration units filtering

Procurement Notes

Verify the specific datasheet version for the FN3268-30-33 to confirm exact leakage current values, as sources indicate variations between 2.6 mA and 4.6 mA. Ensure the application environment falls within the specified -25°C to +100°C operating temperature range. Confirm that the 520 VAC rating aligns with the system voltage requirements before procurement.

Selection Notes

Select this component when a three-phase delta configuration is required with a 30 A current capacity. The terminal block termination style is suitable for fixed installations rather than frequent disconnection. Consider the physical dimensions of 240x50x85 mm for enclosure space planning. Verify compatibility with the target frequency range of up to 60 Hz.

Part Context

This model belongs to the Schaffner FN3268 series of power line filters. The series is characterized by high current handling capabilities and robust construction for industrial environments. The part number suffix typically indicates specific terminal configurations and leakage current characteristics within the product family.
