FN3268-75-34

$466.56

Description：LINE FILTER 75A CHASSIS MOUNT
Series：FN 3268
Mfr：Schaffner EMC Inc.
Package：Box

SKU:a4f567aba6b0 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 75A CHASSIS MOUNT
Series：FN 3268
Mfr：Schaffner EMC Inc.
Package：Box
Filter Type：Three Phase (Delta)
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：75 A
Frequency - Operating：DC ~ 60Hz
Applications：General Purpose
Approval Agency：CSA, ENEC, UR
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：300 V
Voltage - Rated AC (Phase to Phase)：520 V

Download product information

FN3268-75-34

Overview

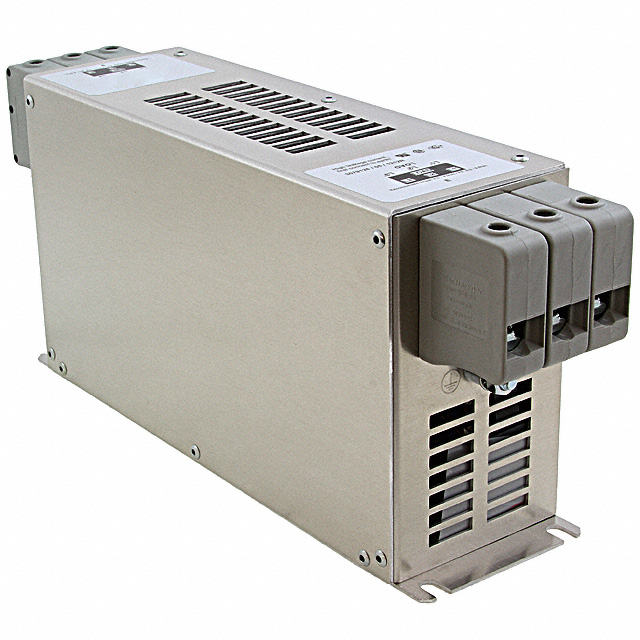

The FN3268-75-34 is a three-phase (Delta) EMC/EMI power line filter from the Schaffner FN3268 series, rated for 75 A current and 520 VAC. It features chassis mounting with terminal block termination and measures 240 mm in length, 80 mm in width, and 135 mm in height, weighing 2.2 kg. The unit operates within a temperature range of -25 °C to +100 °C and exhibits a leakage current of 10.8 mA. Designed for regeneration units, it provides single-stage filtering compatible with residual current devices.

Feature Summary

Compatible with Residual Current Devices (RCDs) per IEC 61008 standards
Single-stage electromagnetic interference suppression
Terminal block connection interface

Applications

Regeneration units
Electronic motor controls
Wind power systems
Photovoltaic systems

Procurement Notes

Verify the manufacturer part number FN3268-75-34 against official TE Connectivity/Schaffner documentation to confirm specifications. Ensure compatibility with 520 VAC systems and 75 A load requirements. Confirm chassis mount dimensions fit the installation space. Check RoHS compliance status via the manufacturer's datasheet before procurement.

Selection Notes

Select this component for applications requiring high-current three-phase filtering with RCD compatibility. The 75 A rating suits heavy industrial loads. Verify that the terminal block termination method aligns with existing wiring infrastructure. Consider the physical dimensions and weight for mechanical support requirements in the final assembly design.

Part Context

This component belongs to the Schaffner FN3268 series, designed for installations involving residual current devices. The series includes variants ranging from 7 A to 180 A. The FN3268-75-34 specifically addresses the 75 A requirement within this lineup, offering standardized performance characteristics consistent with the broader family's design philosophy for industrial EMC compliance.
