FN3270H-10-29

Overview

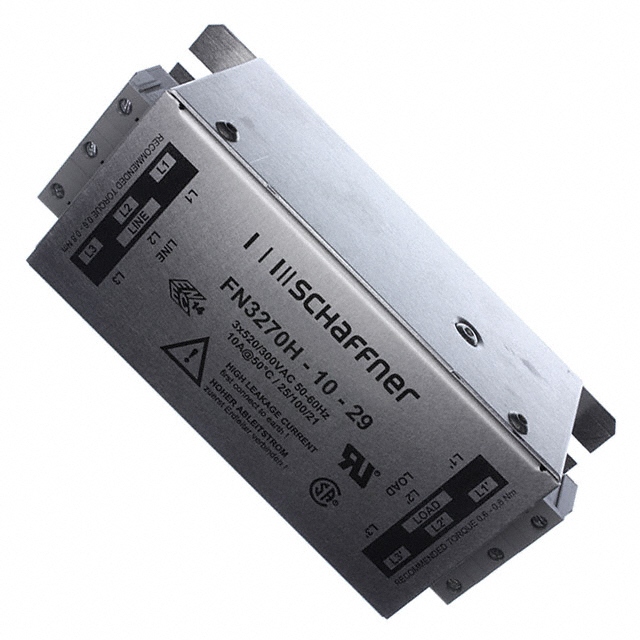

The Schaffner FN3270H-10-29 is a three-phase EMC/EMI line filter designed for industrial applications. It supports a rated current of 10 A and operates at voltages up to 480 V AC, with a frequency range extending from DC to 60 Hz. The unit utilizes a single-stage configuration and features terminal block connections for secure wiring. Designed for chassis mounting, this compact filter ensures minimal space requirements while providing effective noise suppression in demanding environments.

Feature Summary

• Compact and lightweight design optimized for installations requiring minimum mounting space
• Single-stage filtering architecture for efficient electromagnetic interference suppression
• Terminal block termination style ensuring reliable electrical connections

Applications

• Industrial motor drive systems
• Three-phase power distribution networks
• Electromagnetic compatibility compliance in industrial cabinets

Procurement Notes

Verify the specific voltage rating (480V AC) and current capacity (10A) against your system requirements before ordering. Confirm that the terminal block interface matches your existing wiring infrastructure. Ensure the chassis mounting dimensions fit within your designated enclosure space. Cross-reference the manufacturer part number FN3270H-10-29 to avoid confusion with similar series variants.

Selection Notes

Select this model when a compact solution is required for three-phase circuits operating at 10 A. The terminal block interface is suitable for standard wiring practices without specialized busbar tools. Consider the chassis mount requirement during mechanical design. This filter is appropriate for applications needing single-stage attenuation within a limited physical footprint.

Part Context

This component belongs to the Schaffner FN3270 series, which specializes in compact EMC filters for industrial motor drives. The series is characterized by its lightweight construction and space-saving design. The 'H' suffix typically denotes specific housing or connection variations within the broader product family, distinguishing it from other mounting or termination styles available in the same series.

Replacement Considerations

Direct substitutes may include other models within the FN3270 series with matching 10 A ratings and terminal block interfaces. Verify that any replacement maintains the same three-phase configuration and chassis mounting constraints. Consult official TE Connectivity Schaffner documentation for cross-referencing equivalent part numbers.
