FN3270H-320-99

Overview

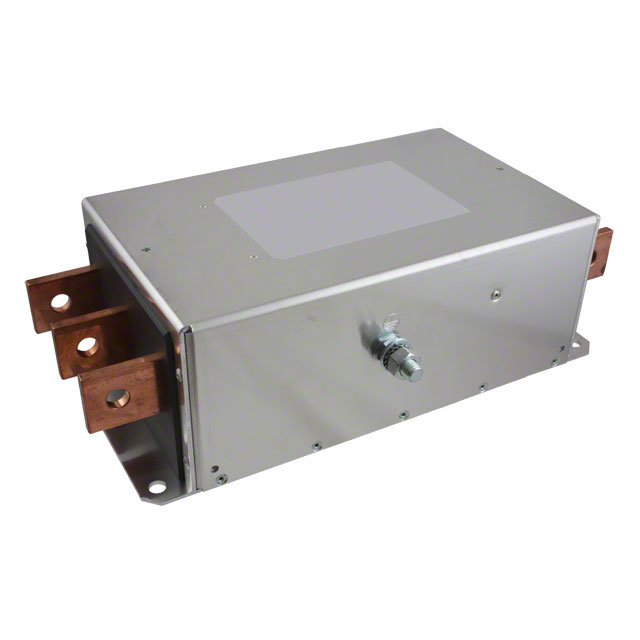

The Schaffner FN3270H-320-99 is a three-phase EMC/RFI power line filter designed for high-current industrial applications. It features a rated current of 320 A and operates at voltages up to 520 VAC with a frequency range of 0 Hz to 60 Hz. The unit utilizes busbar termination for both input and output connections, supporting Delta (3-wire + ground) configurations. Key electrical parameters include a leakage current of 6.9 mA and a maximum power loss of 6.8 W. The device is engineered for chassis mounting and functions within an operating temperature range of -25°C to +100°C.

Feature Summary

• Compact and lightweight design requiring minimum mounting space in installations and cabinets
• High current capacity suitable for demanding industrial power systems
• Robust construction for reliable operation in harsh environments

Applications

• Industrial motor drives and variable frequency drives
• Large-scale manufacturing equipment power supplies
• Heavy-duty renewable energy inverters

Procurement Notes

Verify the specific part number against official TE Connectivity / Schaffner documentation to confirm compatibility with your system's voltage and current requirements. Ensure that the busbar termination style matches your existing infrastructure. Cross-reference the datasheet for precise dimensional constraints and thermal management needs before finalizing procurement decisions.

Selection Notes

Select this component when a high-current three-phase filter is required for chassis-mounted applications. The busbar interface is critical for low-inductance connections in high-power circuits. Consider the physical dimensions and weight during mechanical design integration. Verify that the operating temperature range aligns with the environmental conditions of the installation site.

Part Context

This model belongs to the FN3270 series, which is characterized by its compact form factor and high performance in three-phase filtering applications. The series is widely used in industrial settings where space efficiency and high current handling are paramount. The 'H' suffix typically denotes specific terminal or housing variations within the broader product family.

Replacement Considerations

Consult official manufacturer substitution guides for verified equivalents. Generic cross-references may not match the specific busbar configuration or electrical characteristics of the original component.
