FN3270H-50-34

Overview

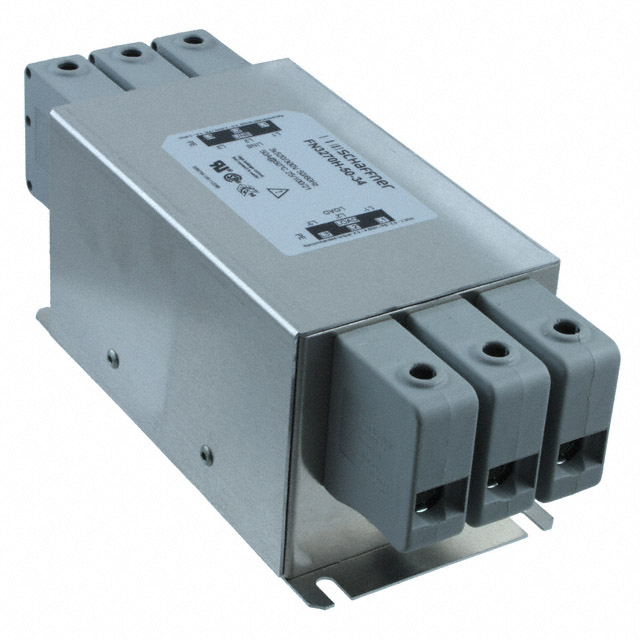

The Schaffner FN3270H-50-34 is a compact three-phase EMC/RFI power line filter designed for industrial applications. It features a rated current of 50 A and a maximum voltage rating of 520 VAC at 60 Hz. The unit utilizes terminal block connections for both input and output, facilitating secure wiring in control panels. Designed for chassis mounting, it measures 130 mm in length, 70 mm in depth, and 68 mm in height. The filter operates within a temperature range of -25°C to +100°C, with a leakage current of 3.4 mA and a power loss of 6.8 W.

Feature Summary

• Compact design requiring minimal mounting space
• Terminal block input and output connections
• Chassis mount construction

Applications

• Industrial machinery
• Power distribution systems
• Control cabinets

Procurement Notes

Verify the specific part number against official TE Connectivity / Schaffner documentation to ensure accuracy. Confirm that the required current rating of 50 A and voltage of 520 VAC match the application requirements. Check for any specific certification needs such as UL or CSA compliance before finalizing procurement.

Selection Notes

Select this model when a compact three-phase filter is required for high-current industrial loads. Ensure the installation environment supports chassis mounting and terminal block termination. Verify that the operating temperature range of -25°C to +100°C aligns with the system's thermal conditions.

Part Context

This component belongs to the FN3270 series, which is characterized by its extremely compact and lightweight design. The series is engineered to minimize space consumption in installations and cabinets while providing effective electromagnetic interference suppression for three-phase AC power lines.

Replacement Considerations

Consult official manufacturer substitution lists for verified equivalent part numbers. Do not assume cross-compatibility with other series without explicit confirmation from technical datasheets.
