Product Detailed Parameters
- Description：LINE FILTER 480VAC 65A CHASS MNT
- Series：FN 3270
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：480V
- Current：65 A
- Frequency - Operating：DC ~ 60Hz
- Applications：Inverters, Power Drive Systems
- Approval Agency：CSA, ENEC, UR
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：300 V
- Voltage - Rated AC (Phase to Phase)：520 V
Download product information
Overview

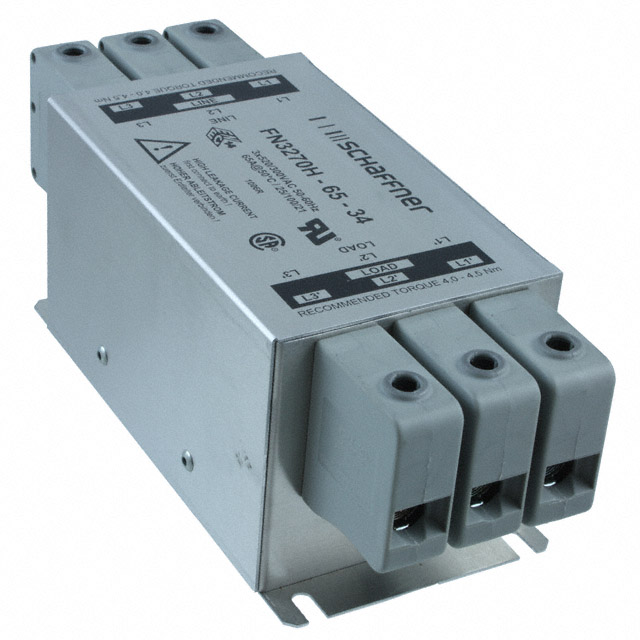

The Schaffner FN3270H-65-34 is a three-phase compact EMC/RFI filter designed for industrial motor drive applications. It features terminal block input and output connections with a chassis mount configuration. The unit supports Delta (3-wire + ground) systems at 520 VAC and 60Hz. Rated for 65 A, this single-stage filter provides EMI suppression in an extremely compact and lightweight design suitable for space-constrained environments.
Feature Summary
- Compact and lightweight construction optimized for space-constrained installations
- Terminal block input and output connections for secure wiring
- Single-stage EMI suppression technology
- Chassis mount configuration for stable integration
Applications
- Industrial motor drive systems
- Three-phase power distribution networks
- Equipment requiring Delta (3-wire + ground) EMC filtering
Procurement Notes
Verify the specific voltage rating of 520 VAC and current capacity of 65 A against your system requirements. Confirm that the terminal block interface matches your existing cabling infrastructure. Ensure the chassis mount dimensions are compatible with your enclosure layout before finalizing procurement decisions.
Selection Notes
Select this model when a compact form factor is critical for three-phase motor drive applications. The terminal block interface simplifies installation compared to screw terminals. Verify compatibility with 60Hz operation and Delta wiring configurations to ensure proper system integration and effective EMI performance.
Part Context
This component belongs to the Schaffner FN3270 series of compact EMC filters. The series is engineered for high-performance noise suppression in industrial settings. The specific model integrates advanced filtering capabilities within a minimized footprint, addressing the growing demand for efficient power management solutions in modern machinery.
Replacement Considerations
Consult official TE Connectivity / Schaffner documentation for verified substitute part numbers. Do not assume cross-compatibility with other series without validating electrical parameters and physical dimensions through manufacturer datasheets.
