FN3270HQ1-100-35

$349.12

Description：LINE FILTER 100A CHASSIS MOUNT
Series：FN 3270
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:1987c1d35d8a Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 100A CHASSIS MOUNT
Series：FN 3270
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Three Phase (Delta)
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：100 A
Frequency - Operating：DC ~ 60Hz
Applications：Inverters, Power Drive Systems
Approval Agency：CE, ENEC, UKCA, UR
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Post
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：300 V
Voltage - Rated AC (Phase to Phase)：520 V

Download product information

FN3270HQ1-100-35

Overview

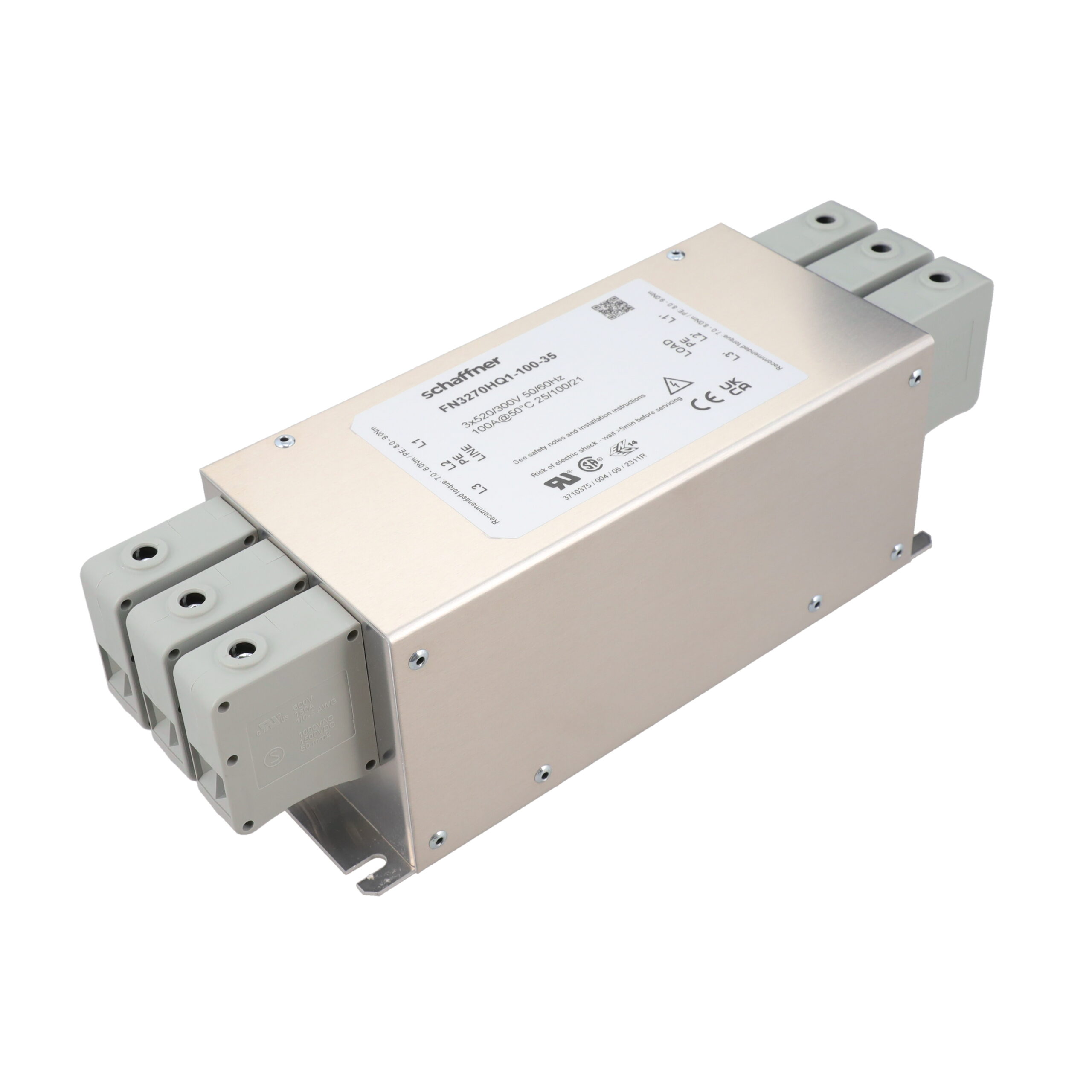

The Schaffner FN3270HQ1-100-35 is a three-phase compact EMC power line filter designed for inverter applications. It operates at a maximum voltage of 520V AC and supports a current rating of 100A at 60Hz. The unit utilizes chassis mounting with terminal block connections. Its physical dimensions are optimized for space-constrained environments, featuring a lightweight design. The component functions within an operating temperature range of -25°C to 100°C.
