FN3270HQ1-150-99

$526.41

Description：LINE FILTER 150A CHASSIS MOUNT
Series：FN 3270
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:61bd9549157a Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 150A CHASSIS MOUNT
Series：FN 3270
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Three Phase (Delta)
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：150 A
Frequency - Operating：DC ~ 60Hz
Applications：Inverters, Power Drive Systems
Approval Agency：CE, ENEC, UKCA, UR
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Post
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：300 V
Voltage - Rated AC (Phase to Phase)：520 V

Download product information

FN3270HQ1-150-99

Overview

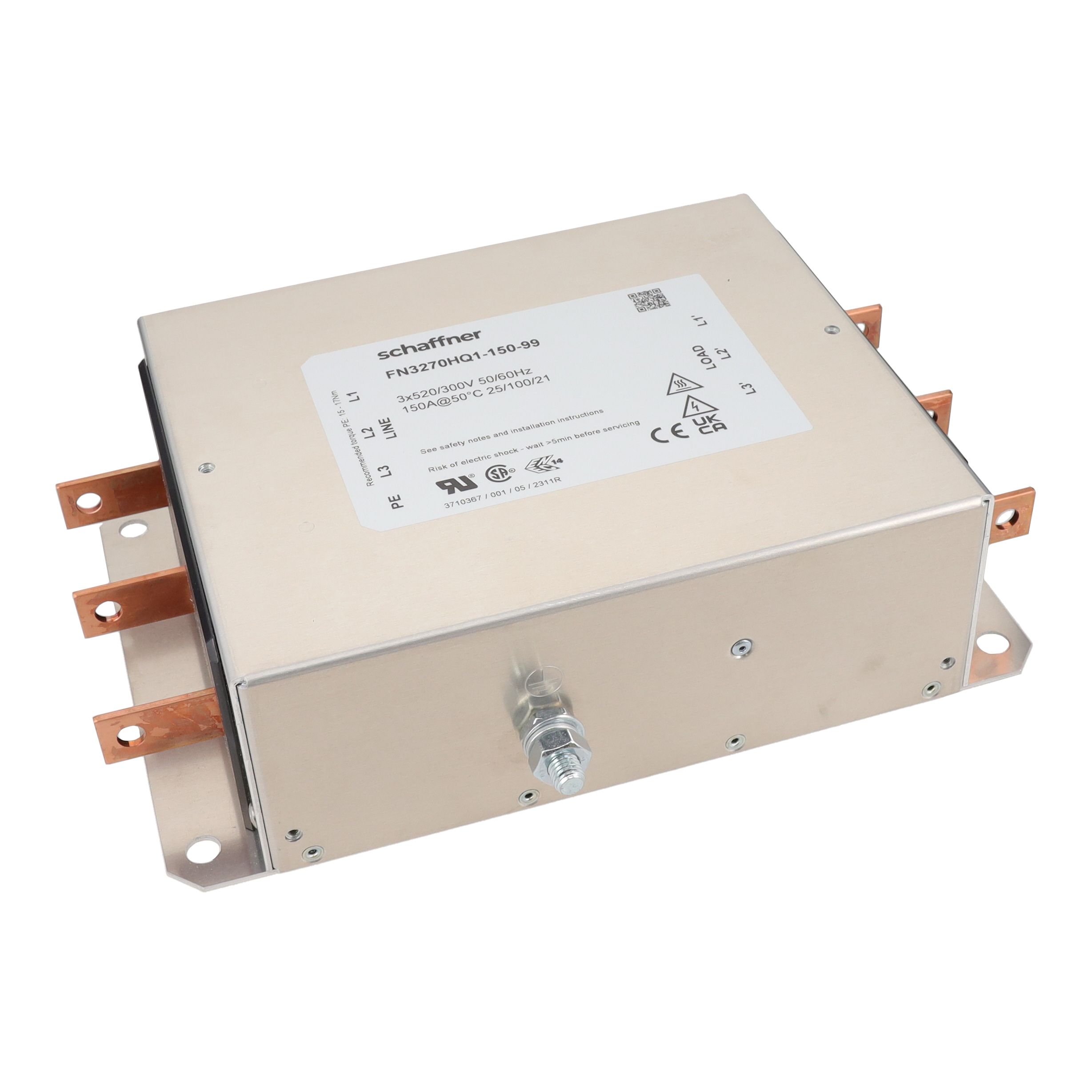

The Schaffner FN3270HQ1-150-99 is a three-phase power line filter rated for 82 A and 520 VAC. It features busbar termination and operates within a temperature range of -25°C to +100°C. The unit measures 246.5 mm in length, 200 mm in width, and 86 mm in height, weighing 6.1 kg. Leakage current is specified at 900 uA.

Feature Summary

Compact design optimized for industrial motor drive applications
Chassis mounting configuration for secure installation
Busbar termination style for high-current connectivity

Applications

Industrial motor drive systems
Three-phase power conditioning equipment
EMC/RFI suppression in heavy machinery

Procurement Notes

Verify the specific part number against official TE Connectivity / Schaffner documentation to confirm electrical ratings and physical dimensions. Ensure compatibility with existing chassis mounting points and busbar interfaces before integration into the system design.

Selection Notes

Select this component when high current capacity and compact form factor are required for three-phase applications. Confirm that the busbar termination method aligns with the system's power distribution architecture and that the operating temperature range meets environmental requirements.

Part Context

This model belongs to the FN3270 series, which provides compact EMC/RFI filtering solutions. The series is designed to minimize space requirements while maintaining effective noise suppression for industrial environments requiring robust power line filtration.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult official manufacturer documentation for potential cross-references or updated series replacements.
