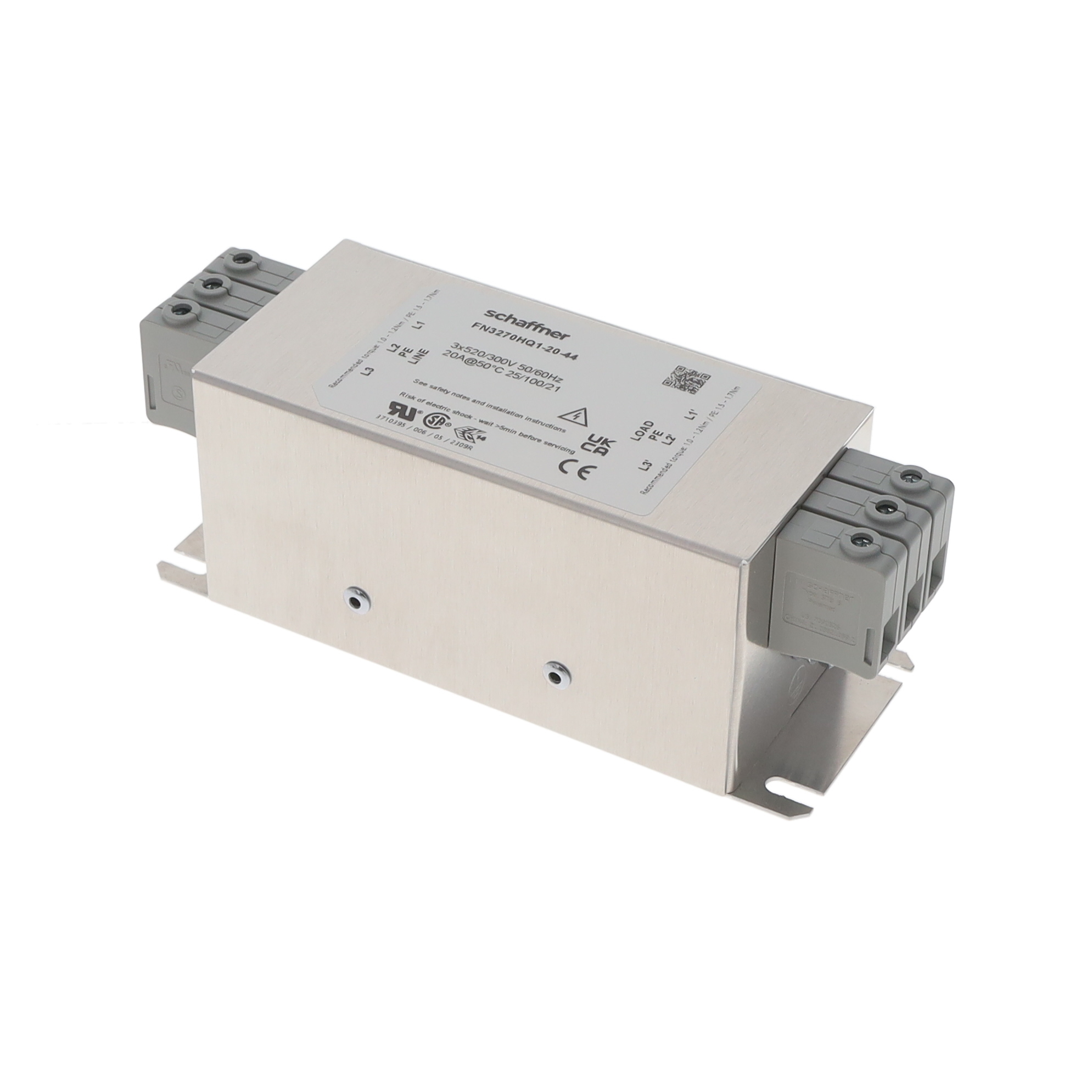

FN3270HQ1-20-44

$101.27

Description：LINE FILTER 20A CHASSIS MOUNT
Series：FN 3270
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:666ccdc5754c Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 20A CHASSIS MOUNT
Series：FN 3270
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Three Phase (Delta)
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：20 A
Frequency - Operating：DC ~ 60Hz
Applications：Inverters, Power Drive Systems
Approval Agency：CE, ENEC, UKCA, UR
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Post
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：300 V
Voltage - Rated AC (Phase to Phase)：520 V

Download product information

FN3270HQ1-20-44

Overview

The Schaffner FN3270HQ1-20-44 is a three-phase EMC/RFI power line filter designed for industrial motor drive applications. It supports a rated current of 20 A and operates at voltages up to 520 VAC with a frequency range of DC to 60 Hz. The unit utilizes terminal post connections and features chassis mounting for secure installation. Key electrical specifications include a maximum leakage current of 26.4 mA and a power loss of 6.8 W. The device is certified under UL, CSA, and IEC/EN standards, ensuring compliance with international safety regulations.

Feature Summary

Compact and lightweight design optimized for minimal space requirements in industrial environments
Single-stage filtering architecture providing effective electromagnetic interference suppression
Terminal post termination method facilitating straightforward wiring integration

Applications

Industrial motor drive systems
Power conditioning equipment
Electromagnetic compatibility protection for sensitive electronics

Procurement Notes

Verify the specific suffix codes against official TE Connectivity / Schaffner documentation to confirm exact pinout and connection type. Ensure the selected variant matches the required voltage and current ratings for the target application. Cross-reference certification marks such as UL and CSA with local regulatory requirements before finalizing procurement decisions.

Selection Notes

Select this model when a compact solution is required for three-phase motor drives operating at 20 A. Consider the terminal post interface for ease of assembly compared to screw terminals. Evaluate the low leakage current specification if strict safety isolation limits are mandated by the system design. Confirm chassis mounting dimensions fit the available enclosure space.

Part Context

This component belongs to the FN3270 series, which is engineered specifically for industrial motor applications. The series emphasizes high performance within a reduced footprint, addressing the need for efficient noise suppression without compromising physical space constraints in modern control panels.
