FN3270HQ1-200-99

Overview

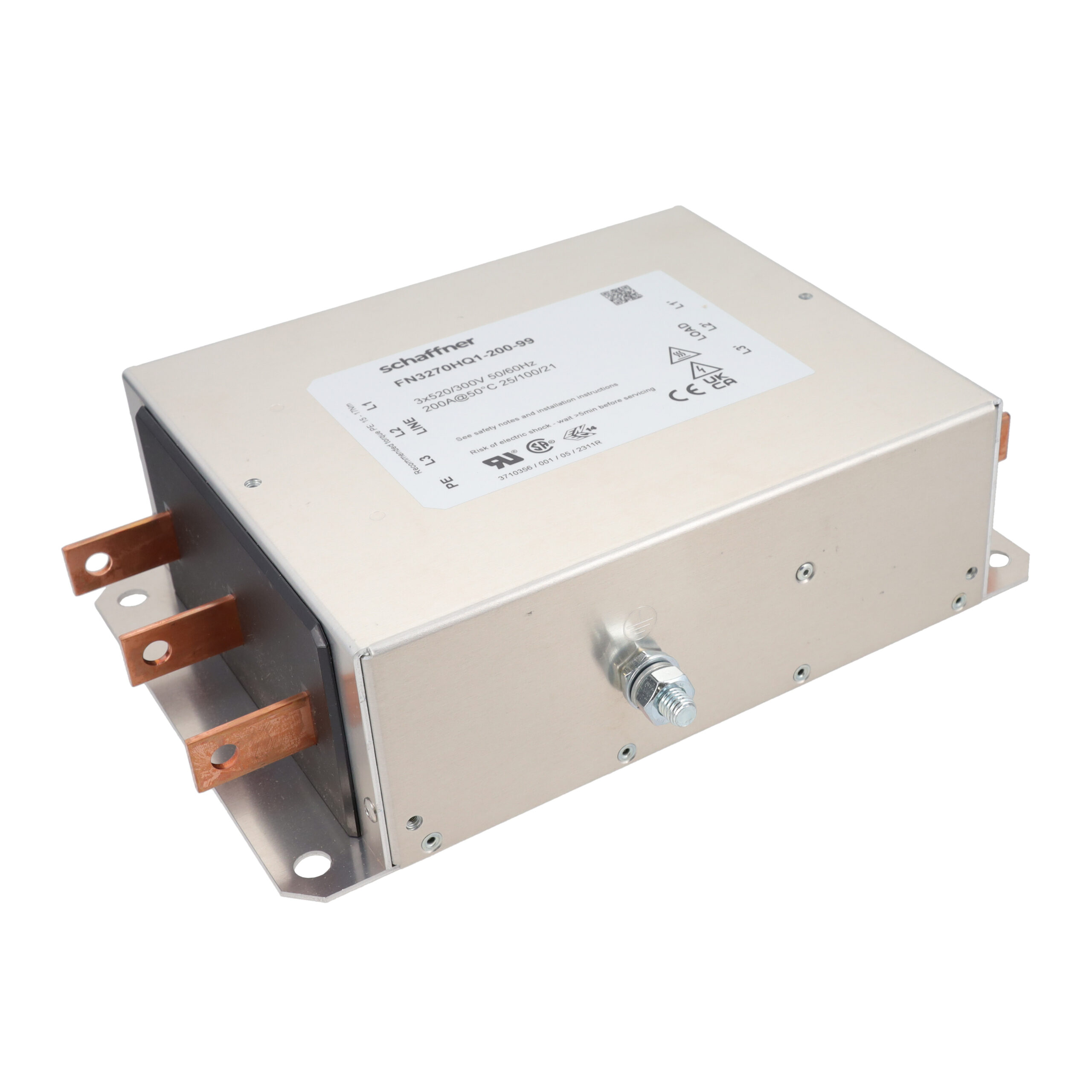

The Schaffner FN3270HQ1-200-99 is a three-phase EMC/RFI filter designed for industrial motor drive applications. It features a compact, lightweight chassis-mount construction with terminal block connections. Rated for 200 A current and 520 V AC voltage at 60 Hz, the unit operates within a temperature range of -25°C to +100°C. The filter utilizes a single-stage configuration to suppress electromagnetic interference while maintaining low leakage current characteristics suitable for sensitive equipment integration.

Feature Summary

• Compact and lightweight design optimized for minimal space requirements in industrial environments
• Chassis mounting configuration with terminal block termination for secure installation
• Single-stage filtering architecture providing effective EMI suppression for motor drives

Applications

• Industrial motor drive systems
• Three-phase power conditioning units
• Heavy machinery control panels

Procurement Notes

Verify the exact part number against manufacturer datasheets to ensure compatibility with specific voltage and current ratings. Confirm that the terminal block interface matches existing wiring infrastructure. Check for updated compliance certifications required by local regulations before finalizing procurement decisions.

Selection Notes

Select this component when high current capacity and compact form factor are critical for three-phase motor drive installations. Ensure the operating environment falls within the specified temperature range. Validate that the single-stage attenuation meets the specific EMI reduction requirements of the application without necessitating additional filtering stages.

Part Context

This model belongs to the FN3270 series, which specializes in compact EMC filters for industrial applications. The series is engineered to provide efficient noise suppression while minimizing physical footprint. It serves as a solution for integrating power quality management into space-constrained industrial equipment and motor control centers.

Replacement Considerations

Consult official substitution lists for verified equivalents. Generic cross-references may not match the specific electrical characteristics or mechanical dimensions required for chassis mounting.
