Product Detailed Parameters
- Description：LINE FILTER 35A CHASSIS MOUNT
- Series：FN 3270
- Mfr：Schaffner EMC Inc.
- Package：Bulk
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：35 A
- Frequency - Operating：DC ~ 60Hz
- Applications：Inverters, Power Drive Systems
- Approval Agency：CE, ENEC, UKCA, UR
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Post
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：300 V
- Voltage - Rated AC (Phase to Phase)：520 V
Download product information
Overview

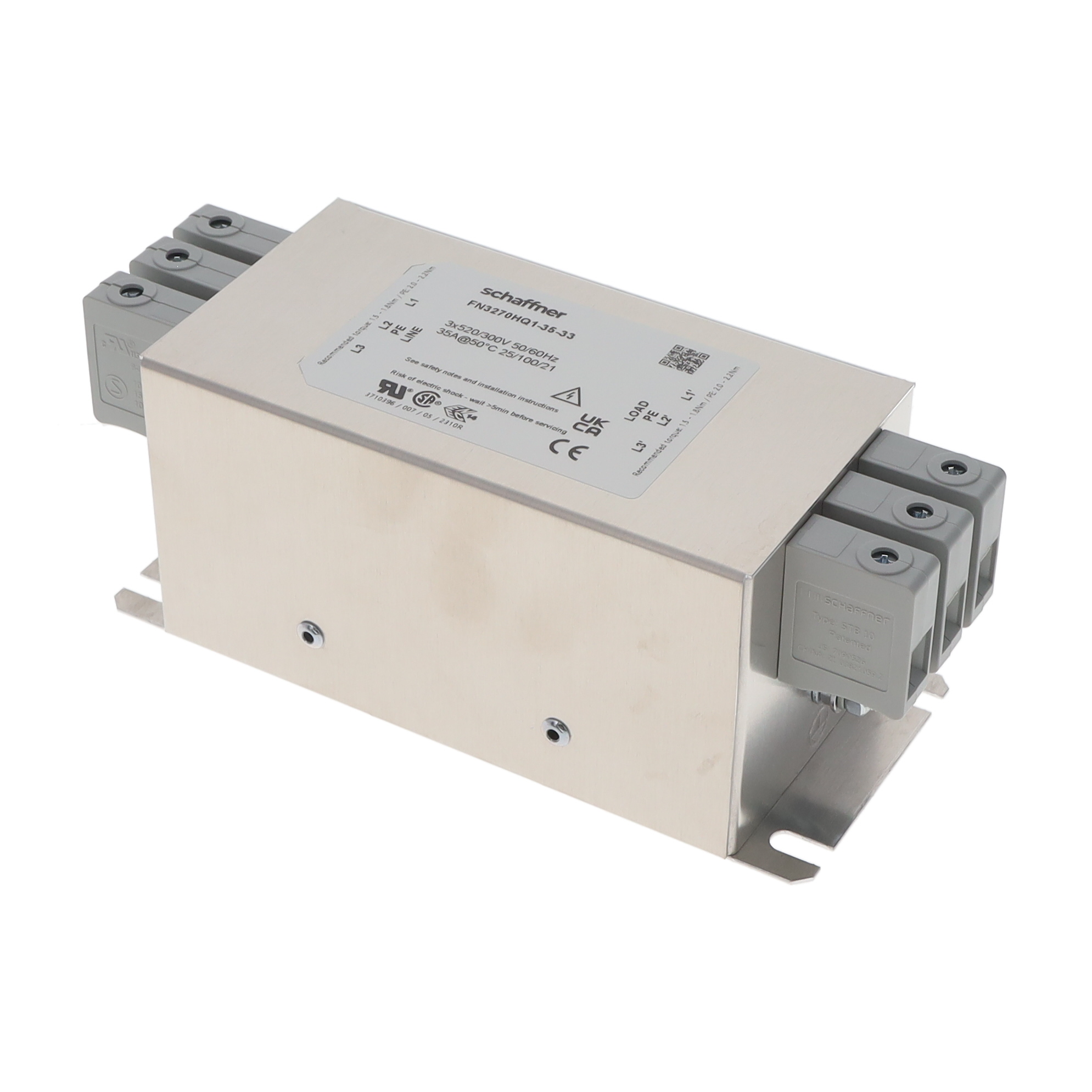

The Schaffner FN3270HQ1-35-33 is a three-phase EMC filter rated for 35 A and 520 VAC at 60 Hz. Designed for chassis mounting, it utilizes terminal block connections for both input and output circuits. The unit features a compact Delta configuration (3-wire plus ground) suitable for industrial environments with operating temperatures ranging from -25°C to +100°C.
Feature Summary
- Compact and lightweight design optimized for minimal space requirements in industrial motor drive applications.
- Provides effective electromagnetic compatibility filtering for three-phase power lines.
- Facilitates easy installation through standard chassis mounting and terminal block interfaces.
Applications
- Industrial motor drive systems
- Three-phase power conditioning equipment
- EMC/RFI suppression in manufacturing machinery
Procurement Notes
Verify the specific suffix codes against official Schaffner documentation to ensure correct voltage and current ratings. Confirm terminal block specifications match system requirements. Check for RoHS compliance status and lead times via authorized distributors. Ensure chassis mounting dimensions align with enclosure constraints before procurement.
Selection Notes
Select this model for applications requiring a compact three-phase filter with terminal block connectivity. Consider the 35 A rating and 520 VAC limit for suitability. Evaluate thermal management needs given the operational temperature range. Compare physical dimensions against available panel space to ensure proper fitment within the assembly.
Part Context
This component belongs to the FN3270 series of compact EMC filters manufactured by Schaffner. The series is characterized by its lightweight construction and efficiency in industrial settings. It serves as a specialized solution for mitigating conducted emissions in three-phase power distribution networks.
Replacement Considerations
Consult official Schaffner substitution guides for verified equivalents. Cross-reference electrical parameters such as current rating and leakage current. Verify mechanical footprint compatibility if direct replacement is required. Do not assume interchangeability with other series without manufacturer confirmation.
