FN3270HQ1-65-34

Overview

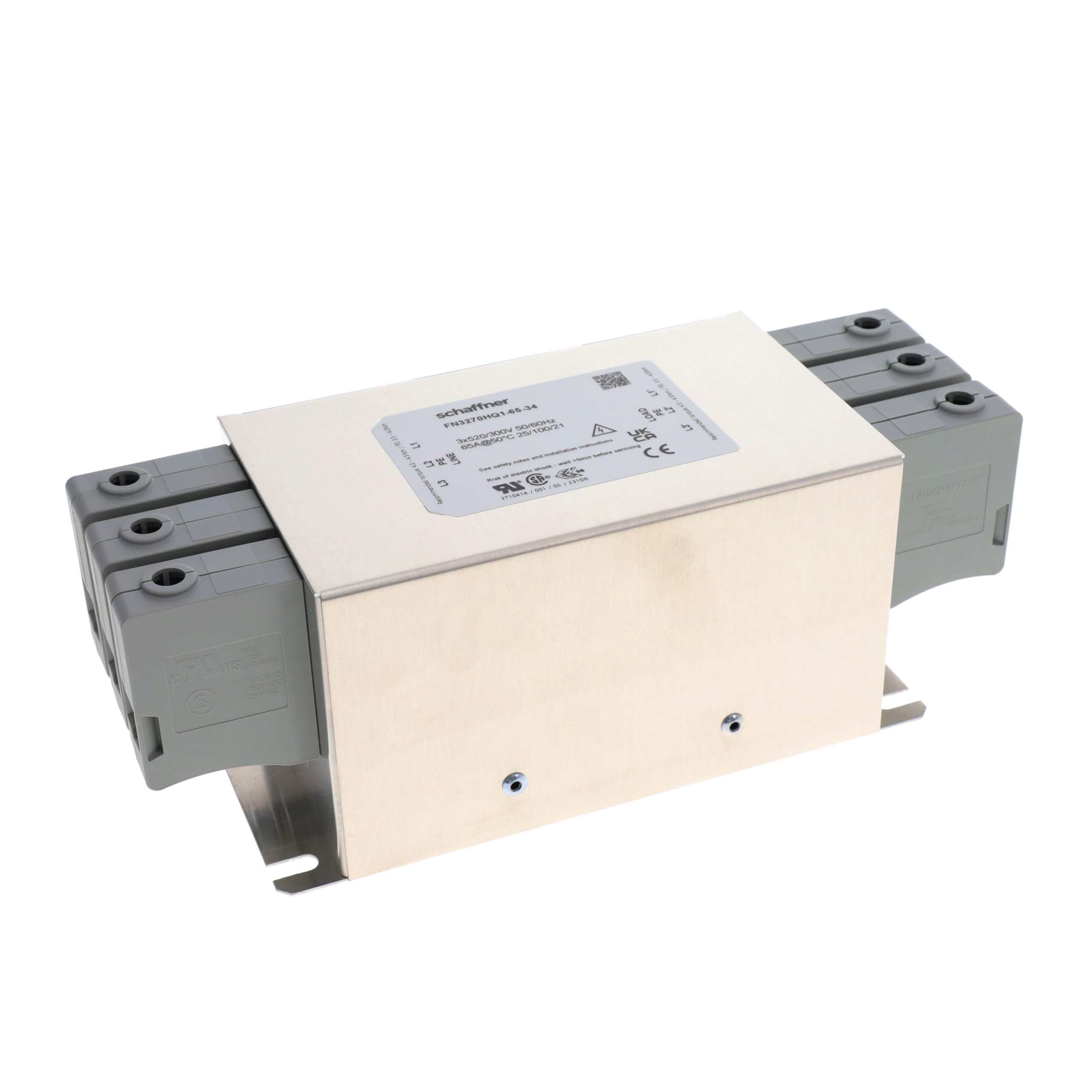

The FN3270HQ1-65-34 is a three-phase EMC/RFI power line filter from the Schaffner FN3270 series, designed for industrial motor drive applications. It features a compact chassis-mount design with terminal block connections. The unit is rated for 520 VAC and supports a current of 89 A. Operating within a temperature range of -25°C to +100°C, it ensures minimal space requirements while providing effective noise suppression.

Feature Summary

• Compact and lightweight construction optimized for industrial motor drive environments
• Chassis mounting configuration utilizing terminal block termination for secure installation
• Designed to ensure easy integration with minimal spatial footprint requirements

Applications

• Industrial motor drive systems
• Three-phase power conditioning equipment
• EMC/RFI noise suppression in heavy machinery

Procurement Notes

Verify the specific voltage and current ratings against the application requirements before procurement. Confirm that the terminal block interface matches the existing wiring infrastructure. Ensure the operating temperature range aligns with the environmental conditions of the installation site. Cross-reference the manufacturer part number to avoid confusion with similar models in the FN3270 family.

Selection Notes

Select this component when a robust, high-current three-phase filter is required for industrial settings. The terminal block interface suits applications where frequent maintenance or rewiring may be necessary. Consider the physical dimensions to ensure adequate clearance within the enclosure. Evaluate the leakage current specifications to ensure compliance with safety standards for the specific deployment.

Part Context

This component belongs to the FN3270 series by TE Connectivity / Schaffner, which specializes in compact EMC/RFI filters. The series is engineered for industrial motor drives, balancing performance with space efficiency. The 'HQ' designation typically indicates specific housing or connection variations within the broader product line, tailored for demanding operational environments.

Replacement Considerations

Consult official substitution guides for compatible alternatives within the FN3270 series. Verify electrical parameters such as current rating and voltage tolerance to ensure functional equivalence. Physical compatibility must be confirmed if direct replacement is intended without modifying the mounting structure.
