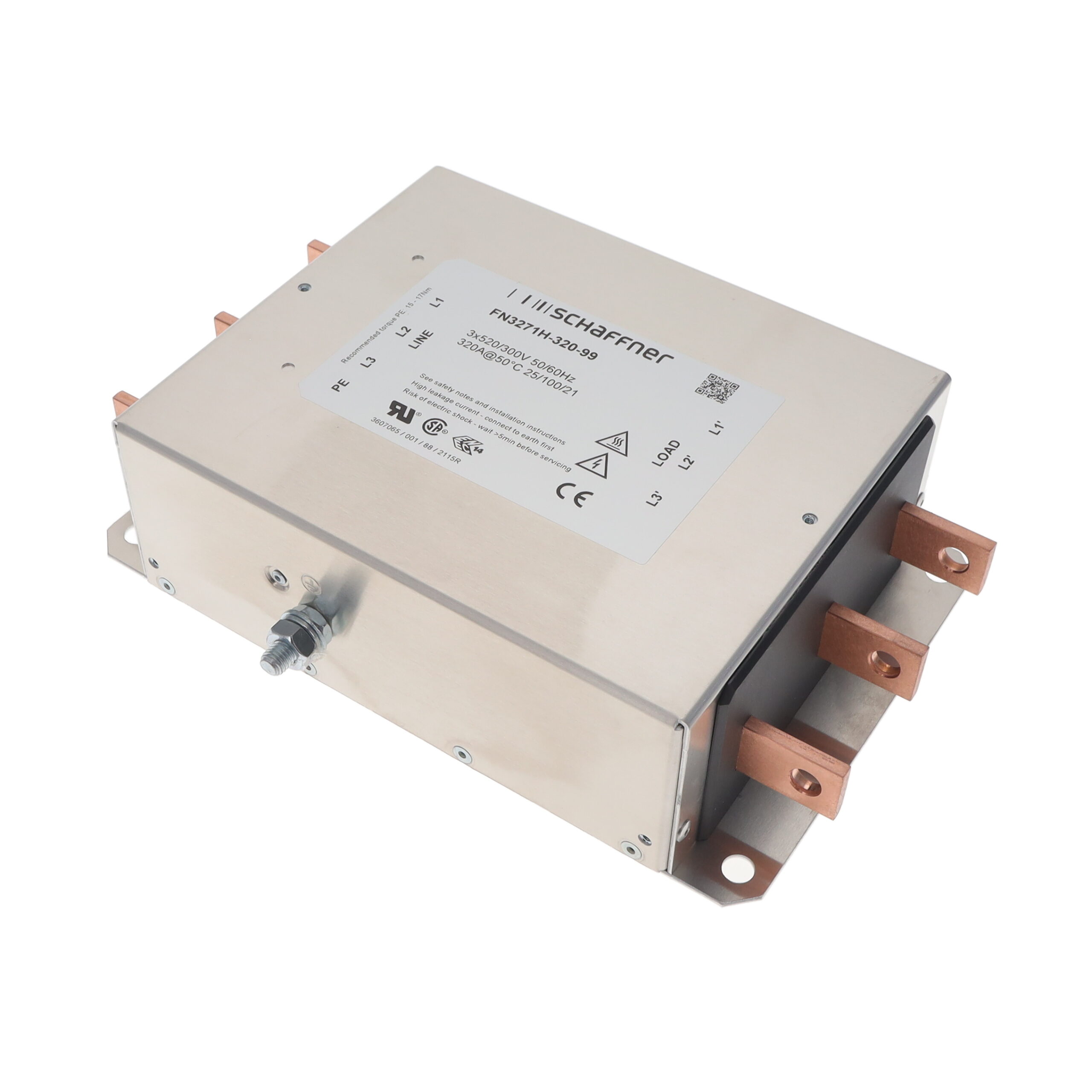

FN3271H-150-99

$553.91

Description：LINE FILTER 150A CHASSIS MOUNT
Series：FN3271
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:e9d1482a777b Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 150A CHASSIS MOUNT
Series：FN3271
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Three Phase (Delta)
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：150 A
Frequency - Operating：DC ~ 60Hz
Applications：Inverters, Power Drive Systems
Approval Agency：CE, ENEC, UKCA, UR
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Post
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：300 V
Voltage - Rated AC (Phase to Phase)：520 V

Download product information

FN3271H-150-99

Overview

The FN3271H-150-99 is a three-phase EMC/RFI filter manufactured by TE Connectivity / Schaffner. It features a rated current of 150 A and a maximum voltage rating of 520 VAC. The unit utilizes busbar inputs and outputs for connection. This component belongs to the FN3271 series, designed for effective electromagnetic interference mitigation in industrial power applications.

Feature Summary

Three-phase configuration for balanced power systems
Busbar input and output interface design
Chassis mounting capability

Applications

Industrial power distribution units
Motor drive systems
High-current AC power entry modules

Procurement Notes

Verify the specific part number against official TE Connectivity or Schaffner documentation to confirm electrical ratings and physical dimensions. Ensure compatibility with existing busbar interfaces and chassis mounting requirements before integration into the final assembly.

Selection Notes

Select this model when high current capacity at 150 A is required alongside three-phase filtering. The busbar termination style necessitates compatible mating hardware. Confirm that the 520 VAC rating aligns with the system's operational voltage levels.

Part Context

This component is part of the FN3271 series from Schaffner, specialized for three-phase EMI/EMC solutions. It serves as a power line filter designed to reduce conducted emissions in demanding industrial environments requiring robust current handling capabilities.

Replacement Considerations

Consult official manufacturer substitution guides for verified equivalents. Cross-reference electrical specifications such as current rating, voltage, and phase configuration to ensure functional compatibility.
