FN3271H-200-99

Overview

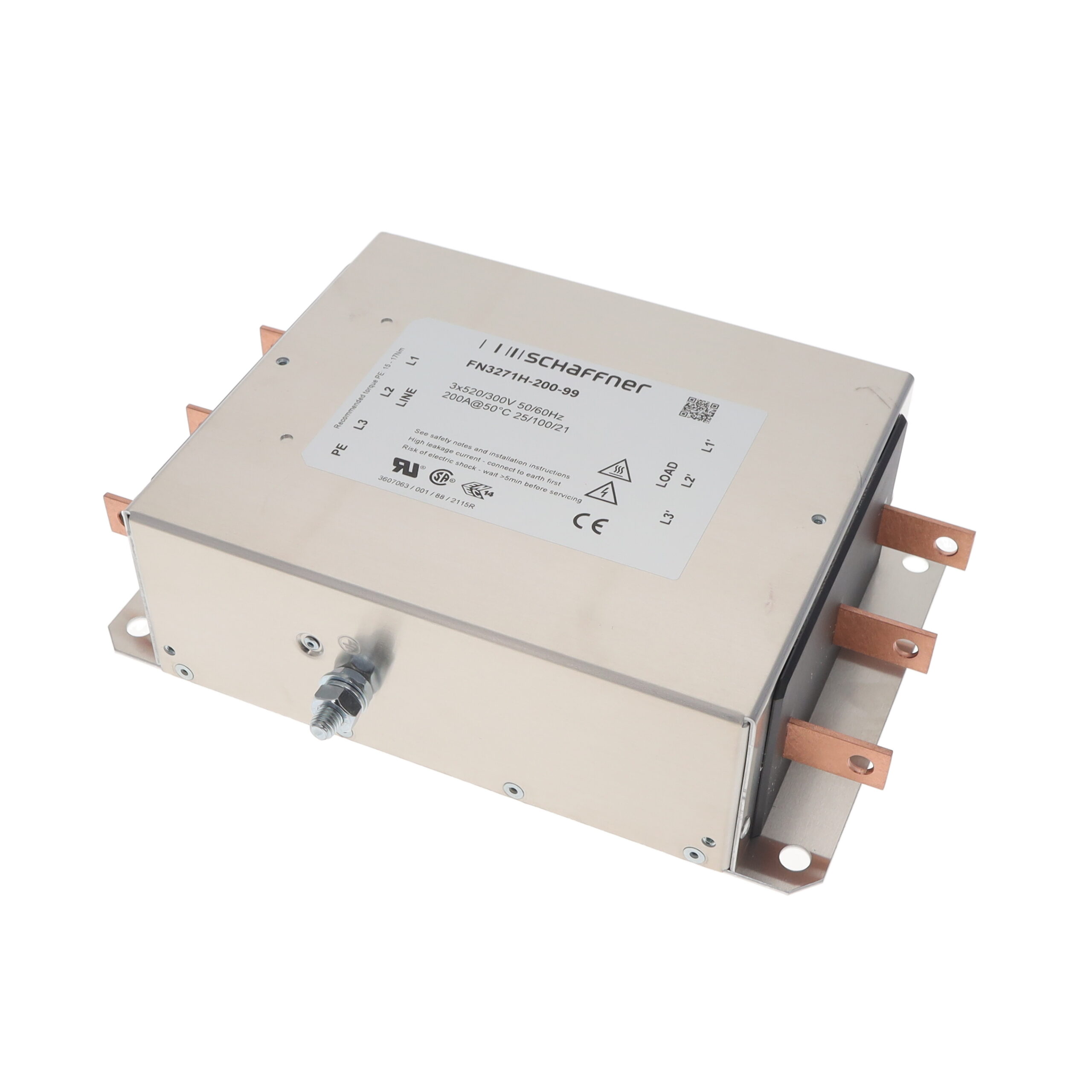

The Schaffner FN3271H-200-99 is a three-phase EMC/EMI line filter designed for industrial motor drive applications. It supports a rated current of 200 A and operates at AC/DC voltages up to 60Hz. The unit features busbar input and output connections, facilitating robust power handling in high-current environments. Designed for chassis mounting, this component provides effective electromagnetic interference mitigation within compact spaces, ensuring compliance with emission standards in demanding industrial settings.

Feature Summary

• Provides effective EMI and EMC mitigation for three-phase systems
• Utilizes busbar input and output connections for high-current reliability
• Engineered for compact installation in industrial motor drive cabinets

Applications

• Industrial motor drive systems
• High-power AC/DC equipment requiring EMI suppression
• Chassis-mounted power distribution units

Procurement Notes

Verify the specific part number FN3271H-200-99 against official TE Connectivity/Schaffner documentation to confirm busbar interface compatibility and thermal ratings. Ensure that mechanical mounting dimensions align with the intended chassis design. Cross-reference electrical specifications with system requirements to validate performance under operational loads.

Selection Notes

Select this model for applications requiring high-current three-phase filtering with busbar termination. Consider the chassis mount form factor for space-constrained enclosures. Evaluate thermal management needs based on the 200 A rating and ensure adequate ventilation within the installation environment to maintain optimal performance.

Part Context

This component belongs to the FN3271 series of three-phase filters from Schaffner. The series is characterized by compact designs suitable for industrial environments. The FN3271H variant specifically addresses high-current requirements, distinguishing it from lower-amperage models within the same product family through its specialized busbar connection architecture.

Replacement Considerations

Consult official manufacturer substitution guides for verified equivalents. Generic cross-references may not match the specific busbar interface or current handling capabilities required for this high-amperage application.
