FN3280H-120-35-R69

$627.90

Description：LINE FILTER 120A CHASSIS MOUNT
Series：FN 3280
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:daf4016d1c74 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 120A CHASSIS MOUNT
Series：FN 3280
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Three Phase (Wye)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：120 A
Frequency - Operating：DC ~ 60Hz
Applications：General Purpose
Approval Agency：CE, CSA, ENEC, UKCA, UR
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：300 V
Voltage - Rated AC (Phase to Phase)：520 V

Download product information

FN3280H-120-35-R69

Overview

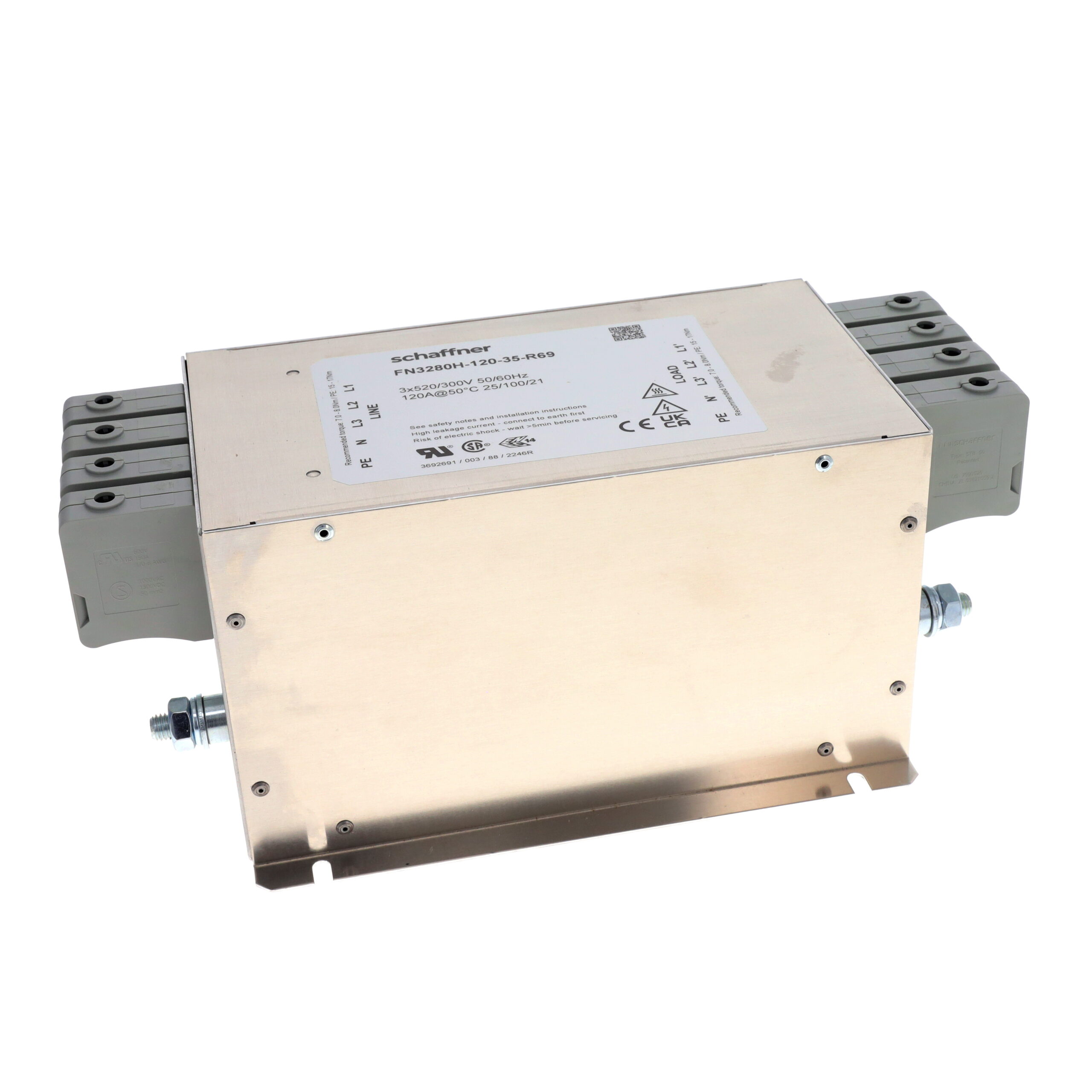

The Schaffner FN3280H-120-35-R69 is a three-phase and neutral EMC line filter rated for 120 A current and 520 VAC. Designed for chassis mounting, it utilizes terminal block connections for both input and output. The unit supports WYE configuration with four wires plus ground. It operates at 60 Hz frequency and provides essential electromagnetic interference suppression for industrial machinery compliance.

Feature Summary

Provides comprehensive EMI/EMC filtering for three-phase power lines
Supports WYE configuration with integrated ground connection
Features robust chassis mounting design for secure installation

Applications

Industrial machinery requiring Class A EMC compliance
Mixed environment equipment power input stages
Inverter and renewable resource system filtering

Procurement Notes

Verify the specific suffix R69 against official datasheets to confirm terminal block orientation and mounting hole patterns. Ensure the 520VAC rating aligns with the target network voltage. Confirm that the 120A continuous current capacity meets the load requirements without derating due to ambient temperature conditions.

Selection Notes

Select this model when high current handling up to 120 A is required for three-phase systems. The WYE configuration with neutral line support distinguishes it from standard three-wire filters. Chassis mount style is suitable for panel integration where space efficiency and thermal dissipation are prioritized over plug-in convenience.

Part Context

This component belongs to the Schaffner FN3280 series of power line filters. The series is engineered for demanding industrial applications, offering reliable noise attenuation across various power frequencies. The H variant typically denotes specific performance enhancements or form factors within the broader product family.

Replacement Considerations

FN3280H-120-35 is a base part number reference. Verify compatibility with FN3280H-120-35-R69 specifications before substitution. Cross-reference with other Schaffner three-phase chassis filters if exact pinouts differ.
