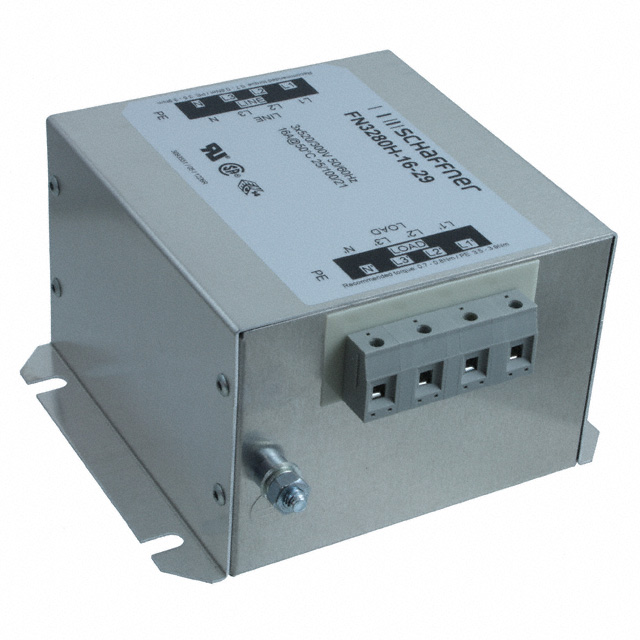

FN3280H-16-29

$183.74

Description：LINE FILTER 480VAC 16A CHASS MNT
Series：FN 3280
Mfr：Schaffner EMC Inc.
Package：Tray

SKU:76c0f66f7d9b Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 480VAC 16A CHASS MNT
Series：FN 3280
Mfr：Schaffner EMC Inc.
Package：Tray
Filter Type：Three Phase (Wye)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：480V
Current：16 A
Frequency - Operating：DC ~ 60Hz
Applications：General Purpose
Approval Agency：CSA, ENEC, UR
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：300 V
Voltage - Rated AC (Phase to Phase)：520 V

Download product information

FN3280H-16-29

Overview

The Schaffner FN3280H-16-29 is a three-phase EMC line filter rated for 16 A and 530 V AC at 60 Hz. Designed for chassis mounting with terminal block connections, it features a two-stage configuration to ensure effective noise suppression. The unit operates within a temperature range of -40°C to 100°C and has a leakage current of 6 mA. It includes a neutral connection and utilizes 2.2 nF capacitance values to meet industrial electromagnetic compatibility standards.

Feature Summary

Two-stage filtering architecture for enhanced attenuation performance
Terminal block termination for straightforward installation
Chassis mount design suitable for industrial enclosures

Applications

Industrial machinery and equipment
Machine tools with multiple driving axes
Systems requiring motor cable lengths of 10 to 20 meters

Procurement Notes

Verify the specific suffix codes against official datasheets to confirm exact terminal configurations and certification requirements. Ensure the input voltage and frequency ratings match the target application's electrical specifications before integration. Cross-reference the manufacturer part number with authorized distributors to confirm current availability and compliance documentation status.

Selection Notes

Select this component for applications requiring robust three-phase noise suppression in industrial environments. Consider the chassis mounting style and terminal block interface when designing panel layouts. Verify that the 16 A current rating and 530 V AC voltage limit align with the system's operational parameters to ensure reliable long-term performance under load.

Part Context

This model belongs to the FN3280 series, which provides high-end line filtering solutions for demanding industrial applications. The series is engineered to support complex machinery, including machine tools with up to 12 driving axes. It addresses electromagnetic interference challenges associated with longer motor cables and high-power drives.
