FN3280H-160-40-R69

Overview

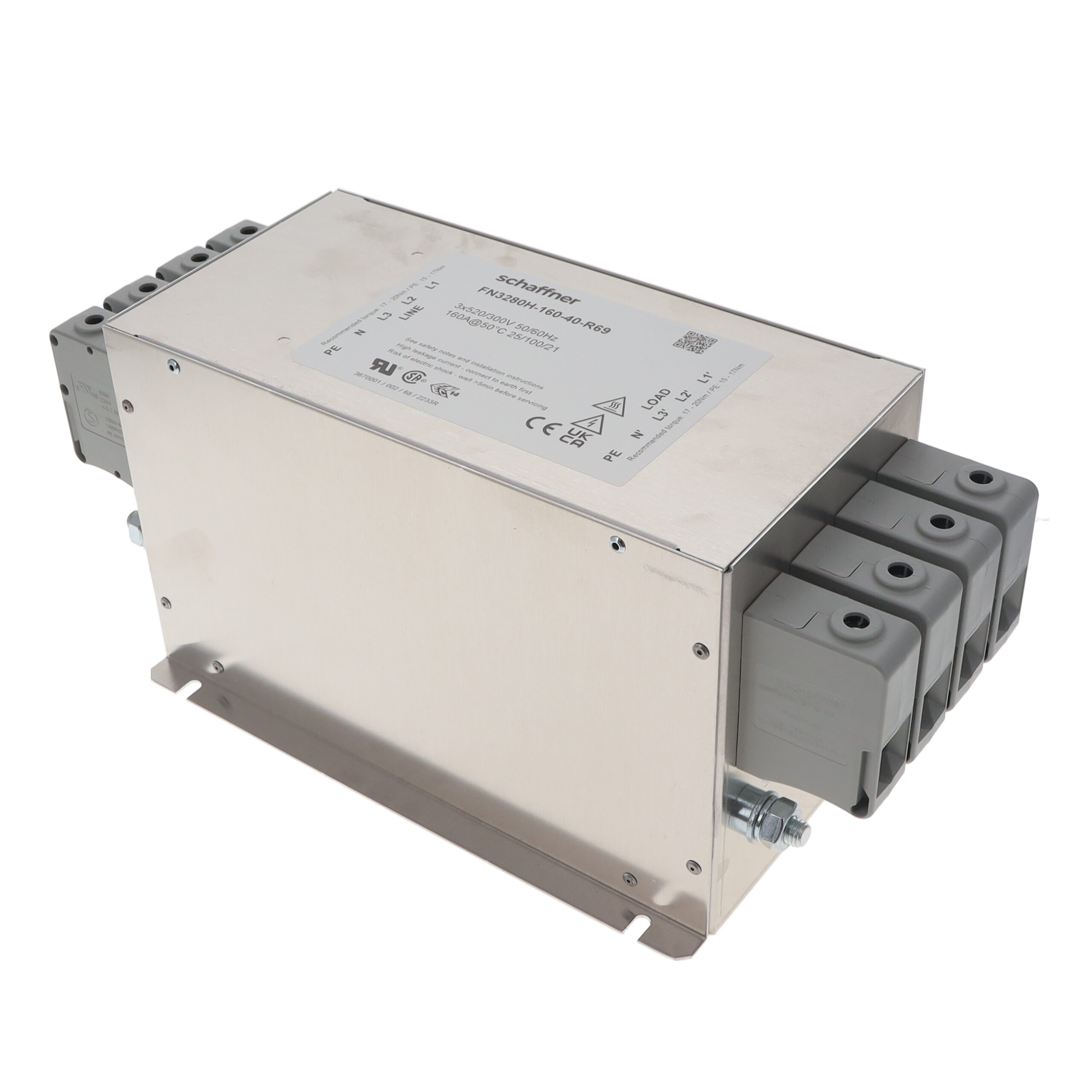

The Schaffner FN3280H-160-40-R69 is a three-phase and neutral EMC power line filter designed for industrial machinery. It supports a rated voltage of 520V AC and a continuous current of 160A. The unit features chassis mounting with terminal block connections, ensuring secure integration into high-power electrical systems.

Feature Summary

• Provides attenuation performance suitable for machine tools with up to twelve driving axes
• Engineered to handle motor cable lengths ranging from ten to twenty meters

Applications

• Industrial machinery
• Machine tools
• Equipment with multiple driving axes

Procurement Notes

Verify the complete part number including the R69 suffix against official TE Connectivity or Schaffner documentation to confirm specific terminal configurations and compliance certifications. Ensure mechanical dimensions match the installation site. Confirm that the 520V AC rating aligns with the system's nominal voltage requirements before procurement.

Selection Notes

Select this component when designing systems requiring robust EMI suppression for high-current three-phase applications. It is appropriate for environments where motor cables exceed standard lengths, necessitating enhanced filtering to prevent conducted emissions. Verify compatibility with the specific drive axis count and cable length constraints outlined in the datasheet.

Part Context

This model belongs to the FN3280H series, which represents high-end line filters manufactured by Schaffner EMC Inc., now part of TE Connectivity. The series is specifically engineered for demanding industrial environments, offering reliable performance for heavy-duty equipment and complex motion control systems.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult official manufacturer documentation for cross-reference information or equivalent specifications.
