FN3280H-200-40-R69

Overview

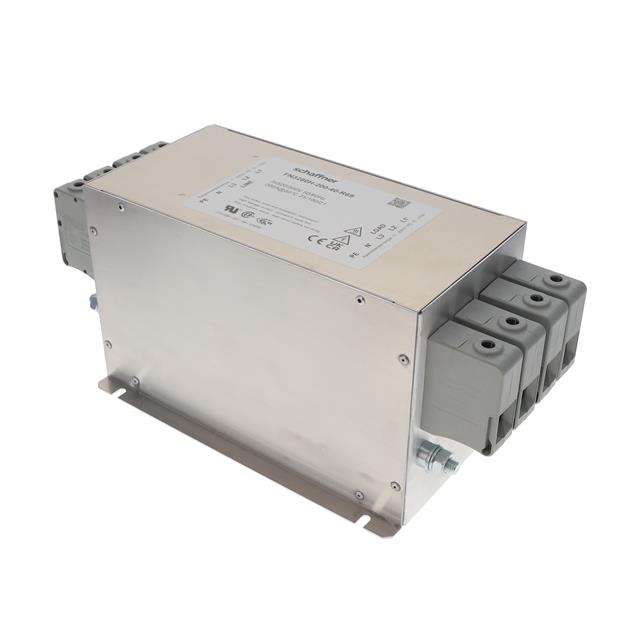

The FN3280H-200-40-R69 is a three-phase and neutral high-end line filter manufactured by Schaffner EMC Inc. It operates at an AC voltage of 520VAC with a rated current of 200A. The component features terminal block connections for secure mounting. Designed for industrial machinery, it provides attenuation performance suitable for machine tools with up to 12 driving axes and motor cables ranging from 10 to 20 meters in length.

Feature Summary

• Provides high-end filtering for three-phase and neutral circuits
• Supports installation on industrial machinery with multiple driving axes
• Facilitates simple and time-saving installation using standard tools

Applications

• Industrial machinery equipment
• Machine tools with up to 12 driving axes
• Systems utilizing motor cables between 10 and 20 meters

Procurement Notes

Verify the complete part number including the -R69 suffix against official Schaffner documentation to ensure correct terminal block configuration. Confirm that the 520VAC rating and 200A current capacity align with the specific power requirements of the target application before procurement.

Selection Notes

Select this component when high current handling at 200A is required for three-phase systems. Ensure the application environment accommodates the physical dimensions associated with high-end line filters. Verify compatibility with existing terminal block infrastructure and confirm that the specified voltage rating meets the system's operational needs.

Part Context

This model belongs to the FN 3280 series of high-end line filters designed for demanding industrial environments. The series is engineered to handle significant current loads while maintaining electromagnetic compatibility. The specific variant includes terminal block termination options distinct from other connection styles within the broader product family.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
