FN3280H-300-99-R69

$962.46

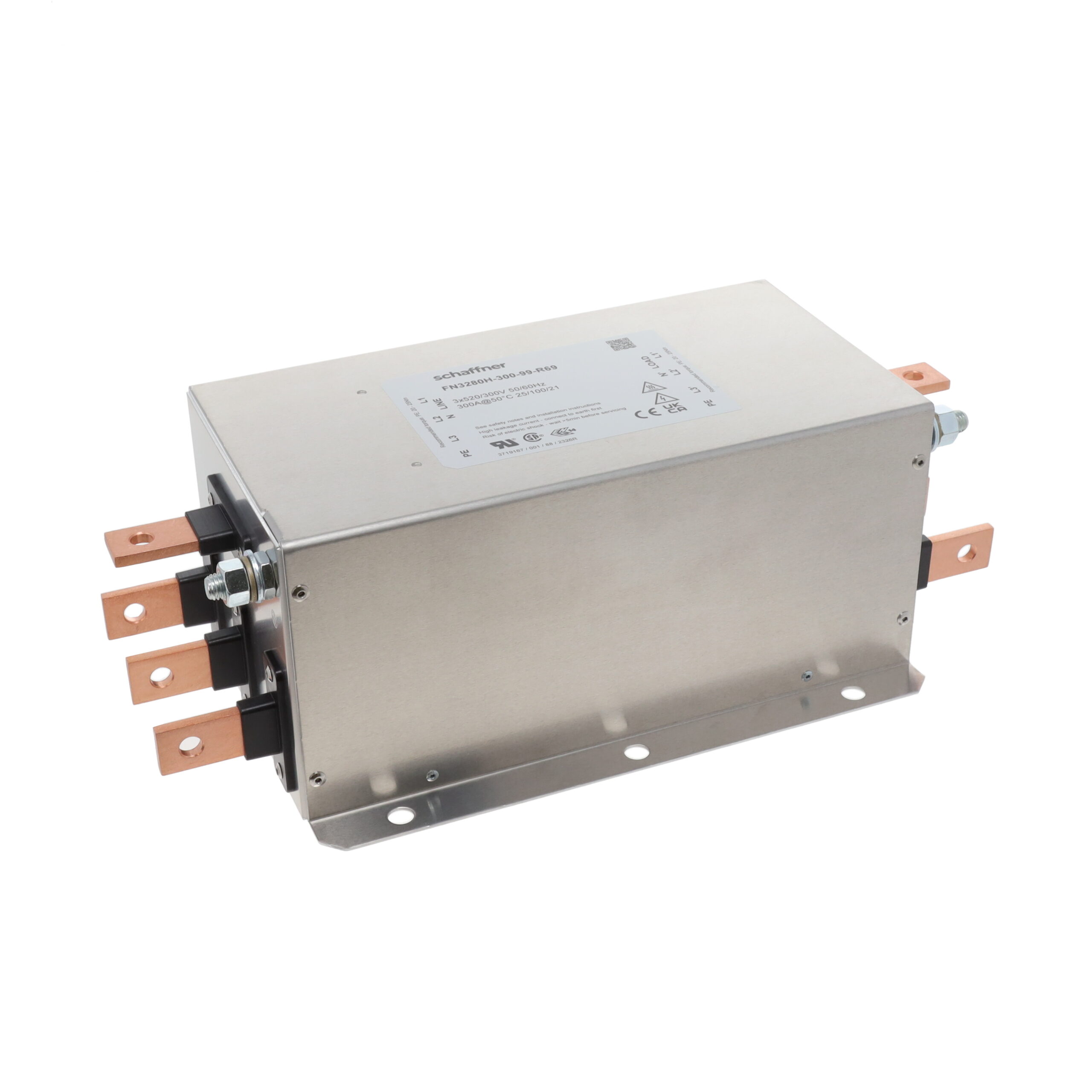

Description：LINE FILTER 300A CHASSIS MOUNT
Series：FN 3280
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:a65682d957da Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 300A CHASSIS MOUNT
Series：FN 3280
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Three Phase (Wye)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：300 A
Frequency - Operating：DC ~ 60Hz
Applications：General Purpose
Approval Agency：CE, CSA, ENEC, UKCA, UR
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Post
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：300 V
Voltage - Rated AC (Phase to Phase)：520 V

Download product information

FN3280H-300-99-R69

Overview

The Schaffner FN3280H-300-99-R69 is a three-phase EMC line filter designed for industrial machinery applications. It supports a rated current of 300 A and operates at voltages up to 520 VAC with a frequency range of DC to 60Hz. The unit features a two-stage filtering configuration and utilizes busbar input and output connections. It is constructed for chassis mounting and includes a neutral connection in a WYE (4 wire + ground) configuration. The component is certified by CSA, ENEC, and UR, ensuring compliance with international safety standards.

Feature Summary

Two-stage attenuation architecture for enhanced noise suppression
Busbar terminal interface for high-current connectivity
Chassis mount design for secure mechanical integration
Certified for global regulatory compliance

Applications

Industrial machinery with complex drive systems
Machine tools requiring multiple driving axes
Equipment compliant with IEC 60204-1 standards

Procurement Notes

Verify the specific suffix R69 ensures compatibility with IEC 60204-1 requirements for your application. Confirm that the busbar input/output terminals match your existing infrastructure. Check for CSA, ENEC, and UR certifications if operating in regulated markets. Ensure the chassis mounting dimensions align with your enclosure design before finalizing procurement.

Selection Notes

Select this model when high current capacity of 300 A is required for three-phase systems. The busbar termination is suitable for heavy-duty industrial power distribution. Consider the two-stage design if superior attenuation performance is necessary for sensitive electronic loads. Verify voltage ratings against the system's maximum operational limits to ensure safe operation.

Part Context

This component belongs to the Schaffner FN3280 series, which provides specialized filtering solutions for industrial environments. The series is engineered to meet the stringent electromagnetic compatibility demands of modern manufacturing equipment. The FN3280H variant specifically addresses high-current applications, offering robust performance in challenging electrical conditions.
