FN3280H-36-33-R69

$244.15

Description：LINE FILTER 36A CHASSIS MOUNT
Series：FN 3280
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:3910a0668fc5 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 36A CHASSIS MOUNT
Series：FN 3280
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Three Phase (Wye)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：36 A
Frequency - Operating：DC ~ 60Hz
Applications：General Purpose
Approval Agency：CE, CSA, ENEC, UKCA, UR
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：300 V
Voltage - Rated AC (Phase to Phase)：520 V

Download product information

FN3280H-36-33-R69

Overview

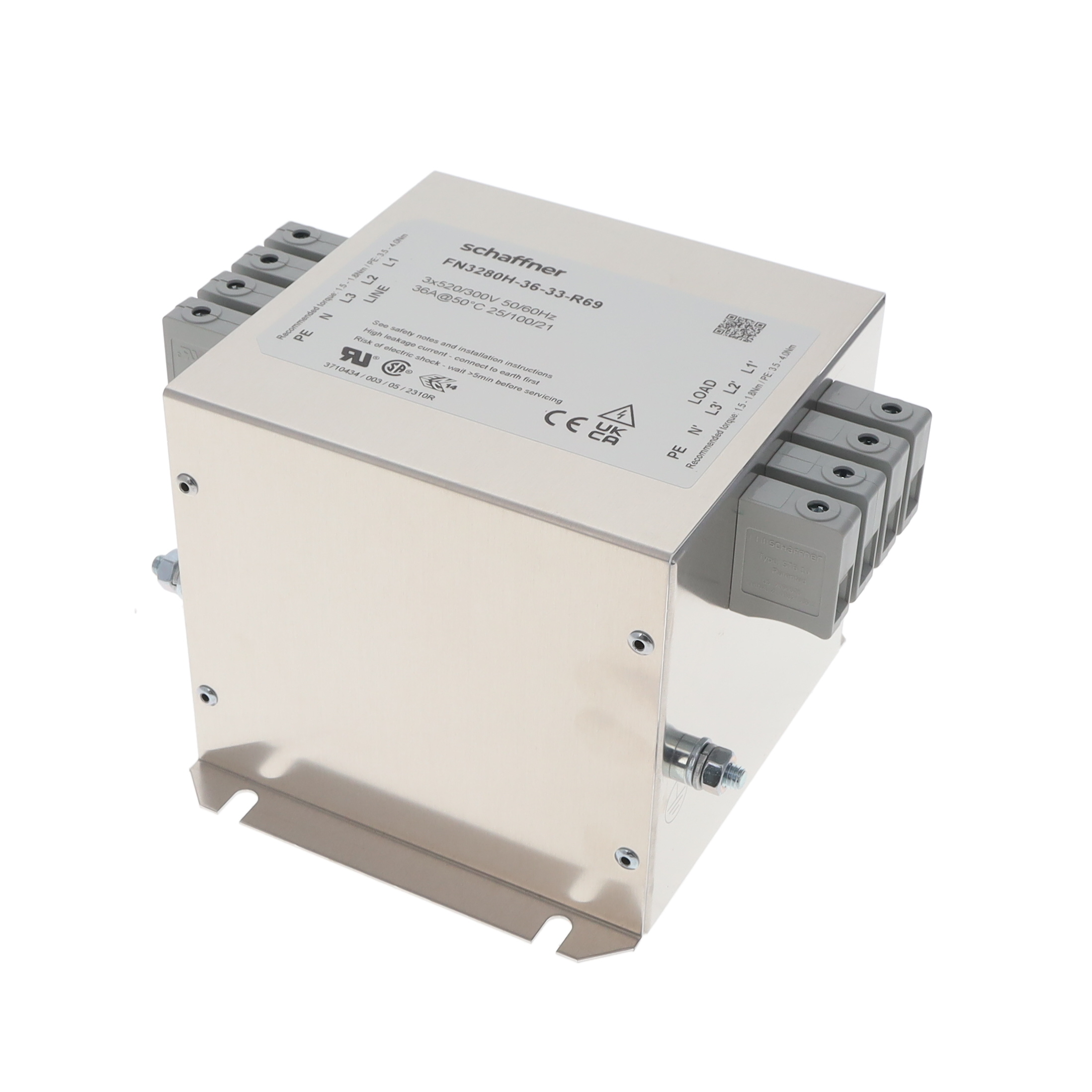

The Schaffner FN3280H-36-33-R69 is a three-phase EMC line filter designed for industrial machinery applications. It supports a rated current of 36 A and operates at voltages up to 520 VAC with frequencies ranging from DC to 60 Hz. The unit features a two-stage configuration utilizing terminal block connections for both input and output. Designed for chassis mounting, it accommodates WYE (4-wire plus ground) systems. The component functions within an operating temperature range of -25°C to +100°C.

Feature Summary

Two-stage attenuation architecture for enhanced noise suppression
Terminal block interface for secure electrical connections
Chassis mount design for stable mechanical integration
Compliance support for IEC 60204-1 standards via R69 option

Applications

Industrial machinery with complex drive axes
Machine tools requiring high attenuation performance
Systems utilizing motor cables up to 20 meters in length
Equipment adhering to IEC 60204-1 safety requirements

Procurement Notes

Verify the specific suffix R69 against project requirements to ensure compliance with IEC 60204-1 standards for complex machines. Confirm that the terminal block termination style matches existing wiring infrastructure. Validate voltage and current ratings against the actual load profile to prevent derating issues. Ensure chassis mounting provisions align with the enclosure design specifications.

Selection Notes

Select this model when high-performance filtering is required for multi-axis industrial drives. The two-stage design offers superior attenuation compared to single-stage alternatives. The R69 suffix is critical for applications demanding specific machine safety compliance. Consider the physical dimensions and terminal block layout during the initial system integration phase to ensure proper fitment.

Part Context

This component belongs to the FN3280 series, which provides specialized filtering solutions for demanding industrial environments. The series is engineered to handle significant electromagnetic interference generated by variable frequency drives and motor controllers. It serves as a key element in maintaining signal integrity and regulatory compliance in heavy-duty manufacturing equipment.
