Product Detailed Parameters
- Description：LINE FILTER 480VAC 36A CHASS MNT
- Series：FN 3280
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Three Phase (Wye)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：480V
- Current：36 A
- Frequency - Operating：DC ~ 60Hz
- Applications：General Purpose
- Approval Agency：CSA, ENEC, UR
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：300 V
- Voltage - Rated AC (Phase to Phase)：520 V
Download product information
Overview

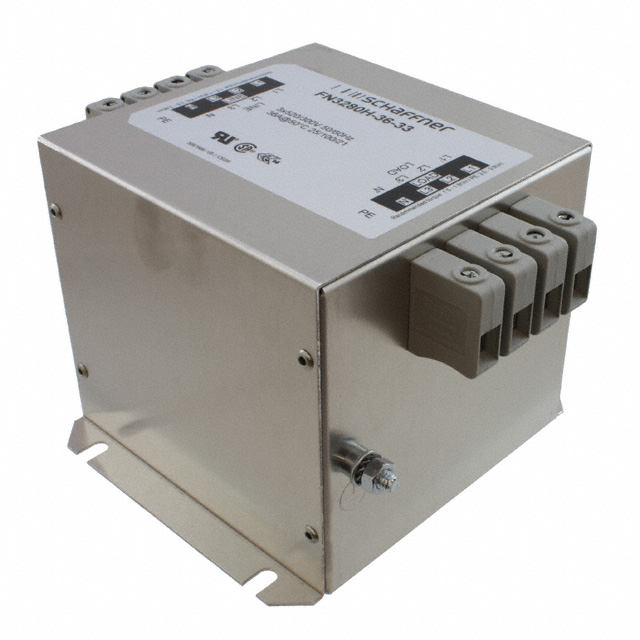

The FN3280H-36-33 is a three-phase plus neutral EMC/EMI line filter from the Schaffner FN3280 series. It features a 36 A current rating and operates at frequencies from DC to 60 Hz with a voltage rating of 520 VAC. The unit utilizes chassis mount installation and terminal block connections for both input and output. Designed for WYE (4-wire + ground) configurations, it combines high attenuation performance with low leakage current characteristics suitable for industrial equipment.
Feature Summary
- Combines high attenuation performance with low leakage current
- Features solid, touch-safe terminal blocks for secure connections
- Compact and lightweight design optimized for industrial equipment
Applications
- Industrial equipment power conditioning
- Three-phase motor drive systems
- General-purpose EMC/EMI suppression in WYE configurations
Procurement Notes
Verify the specific suffix 'H' and current rating '36' against the official TE Connectivity Schaffner datasheet to ensure compatibility with the target system's voltage and phase requirements. Confirm that the terminal block interface matches the existing wiring infrastructure before procurement.
Selection Notes
Select this component when a three-phase plus neutral configuration is required for high-current applications up to 36 A. Ensure the installation environment supports chassis mounting and that the operating frequency range of DC to 60 Hz aligns with the power supply specifications.
Part Context
This model belongs to the FN3280 series, which is engineered for compactness and lightweight construction. The series is specifically designed to meet the demands of industrial environments by providing robust electromagnetic interference suppression while maintaining a small physical footprint relative to its current handling capacity.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with alternative models such as those in the FN3256 series only if they match the specific 36 A rating and terminal block interface requirements.
