FN3280H-400-99-R69

$1,046.33

Description：LINE FILTER 400A CHASSIS MOUNT
Series：FN 3280
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:5a0149437458 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 400A CHASSIS MOUNT
Series：FN 3280
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Three Phase (Wye)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：400 A
Frequency - Operating：DC ~ 60Hz
Applications：General Purpose
Approval Agency：CE, CSA, ENEC, UKCA, UR
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Post
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：300 V
Voltage - Rated AC (Phase to Phase)：520 V

Download product information

FN3280H-400-99-R69

Overview

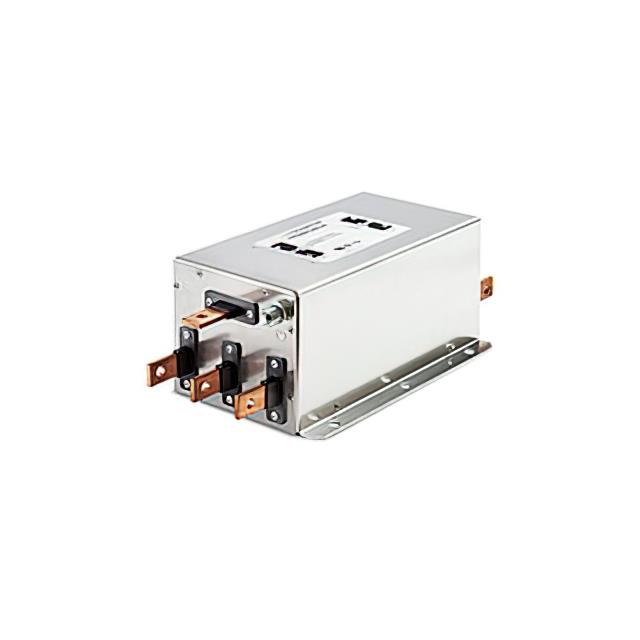

The Schaffner FN3280H-400-99-R69 is a three-phase and neutral power line filter designed for high-current industrial applications. It features a rated voltage of 520 VAC and a continuous current rating of 400 A. The unit utilizes busbar input and output connections with chassis mounting. Key electrical specifications include a leakage current of 42.1 mA and an operating frequency range of 0 Hz to 60 Hz. Physical dimensions are 325 mm in length, 170 mm in width, and 150 mm in height, with a weight of approximately 11 kg.

Feature Summary

Combines high attenuation performance with low leakage current characteristics
Features solid, touch-safe terminal blocks for secure connections
Designed to meet EMC requirements for complex machine tools

Applications

Machine tools with multiple driving axes
Regenerative units in industrial drive systems
Applications requiring significant motor cable lengths

Procurement Notes

Verify the specific suffix configuration against the official datasheet to ensure compatibility with required terminal types and mounting hardware. Confirm that the busbar interface matches the system's electrical connection scheme. Check for regional shipping restrictions due to the component's substantial physical size and weight before finalizing orders.

Selection Notes

Select this model when high current capacity near 400 A is required alongside strict leakage current limits. Ensure the installation environment supports chassis mounting and provides adequate clearance for the specified physical dimensions. Verify that the 520 VAC rating aligns with the system's nominal voltage levels.

Part Context

This component belongs to the FN3280 series, which integrates high-performance filtering with robust construction for demanding industrial environments. The series is engineered to address electromagnetic interference challenges in heavy-duty machinery and power conversion systems.

Replacement Considerations

Consult the manufacturer's cross-reference documentation for verified substitute part numbers. Ensure any replacement maintains identical current ratings, voltage specifications, and terminal configurations.
