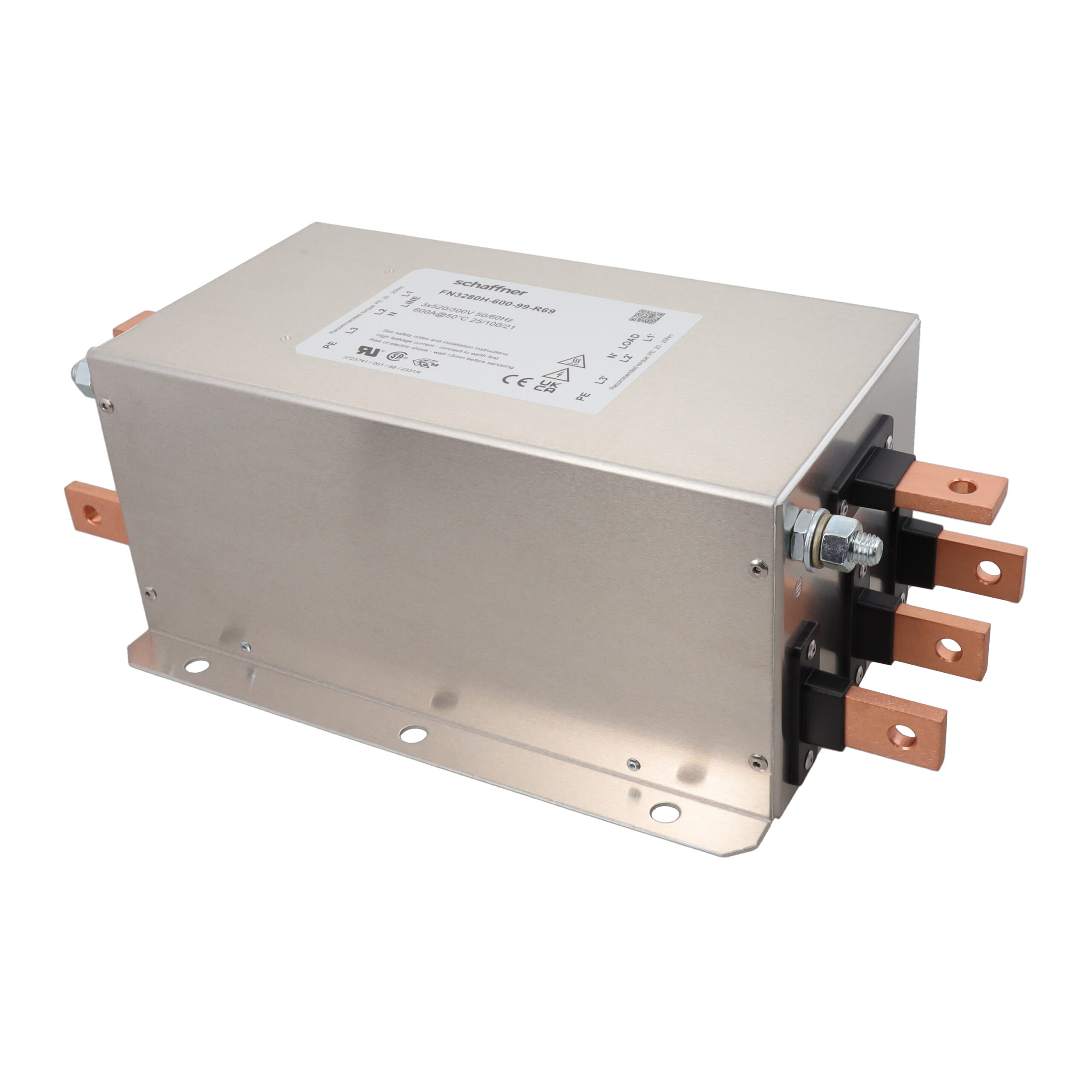

FN3280H-600-99-R69

$1,130.18

Description：LINE FILTER 600A CHASSIS MOUNT
Series：FN 3280
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:11c0f23875ec Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 600A CHASSIS MOUNT
Series：FN 3280
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Three Phase (Wye)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：600 A
Frequency - Operating：DC ~ 60Hz
Applications：General Purpose
Approval Agency：CE, CSA, ENEC, UKCA, UR
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Post
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：300 V
Voltage - Rated AC (Phase to Phase)：520 V

Download product information

FN3280H-600-99-R69

Overview

The Schaffner FN3280H-600-99-R69 is a three-phase EMC filter rated for 600 A and 520 VAC. It features busbar input and output connections with WYE (4 wire + ground) configuration. Designed for chassis mounting, this component operates within the FN3280 series.

Feature Summary

High current capacity of 600 A for heavy industrial loads
Busbar interface for robust electrical connections
Chassis mount design for secure installation

Applications

Industrial equipment
Machinery
Machine tools

Procurement Notes

Verify the exact part number FN3280H-600-99-R69 against official Schaffner documentation to confirm specifications. Ensure compatibility with 520 VAC systems and 600 A current requirements. Confirm busbar connection types match existing infrastructure before procurement.

Selection Notes

Select this model for applications requiring high-current three-phase filtering. The 600 A rating suits heavy machinery. Verify voltage compatibility at 520 VAC. Ensure chassis mounting space is available. Confirm busbar termination matches system design.

Part Context

This component belongs to the Schaffner FN3280 series of three-phase EMC filters. The series is designed for industrial environments requiring significant noise suppression. The specific model handles high currents up to 600 A.
