FN3280H-80-35

Overview

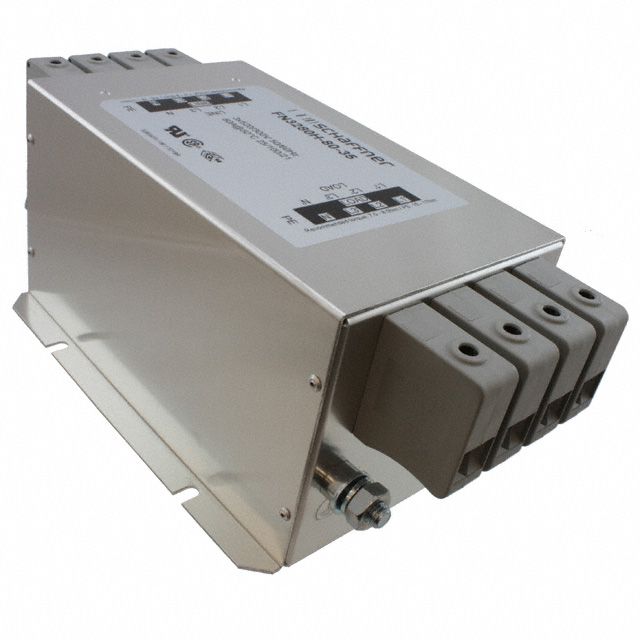

The FN3280H-80-35 is a three-phase plus neutral line filter from the Schaffner FN 3280 series, designed for high-end industrial machinery. It features an 80A current rating and chassis mount installation. The component provides attenuation performance to meet requirements for machine tools with up to 12 driving axes and motor cables ranging from 10 to 20 meters in length.

Feature Summary

• Designed for high-end industrial machinery and equipment applications
• Provides necessary attenuation for complex multi-axis systems
• Accommodates extended motor cable lengths typical in industrial drives

Applications

• Industrial machinery and equipment
• Machine tools with multiple driving axes
• Systems utilizing long motor cable runs

Procurement Notes

Verify the specific part number against official manufacturer documentation to ensure compatibility with your system's voltage and current requirements. Confirm that the chassis mounting style and terminal configuration match your enclosure design. Check for any recent product change notices regarding packaging or material composition before finalizing procurement.

Selection Notes

Select this filter when dealing with three-phase loads requiring 80A capacity in industrial settings. Consider the need for handling long motor cables (up to 20m) which may require enhanced filtering to prevent common-mode noise issues. Ensure the application environment supports the specified operating temperature range and physical dimensions of the chassis mount unit.

Part Context

This component belongs to the FN 3280 series, which specializes in three-phase power line filters for demanding industrial environments. The series is engineered to address electromagnetic interference challenges in heavy-duty machinery, ensuring compliance with EMC standards while maintaining stable operation under high current conditions.

Replacement Considerations

Consult official substitution guides for equivalent models within the FN 3280 series or compatible alternatives from TE Connectivity Schaffner. Verify that any substitute maintains the same current rating, phase configuration, and attenuation characteristics.
