Product Detailed Parameters
- Description：LINE FILTER 530V/305VAC 16A CHAS
- Series：FN 3287
- Mfr：Schaffner EMC Inc.
- Package：Bulk
- Filter Type：Three Phase (Delta)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：530V, 305V
- Current：16 A
- Frequency - Operating：DC ~ 60Hz
- Applications：Inverters, Power Drive Systems
- Approval Agency：CE, ENEC, UR
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：305 V
- Voltage - Rated AC (Phase to Phase)：530 V
Download product information
Overview

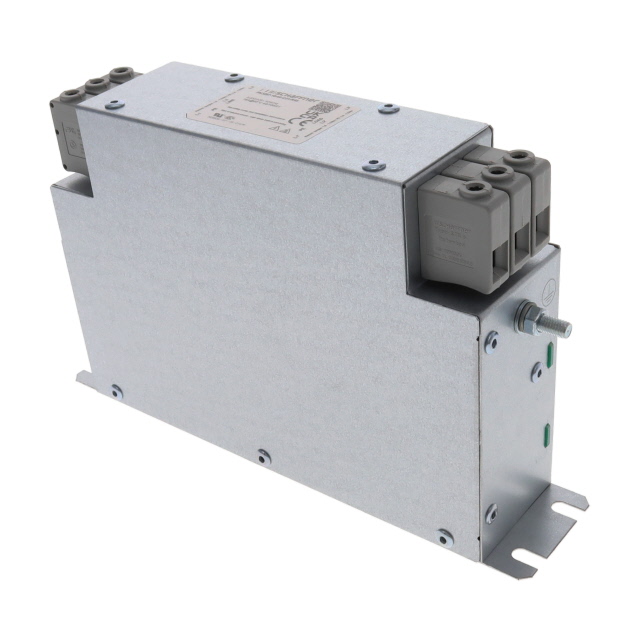

The FN3287-16-44-C21-R65 is a three-phase delta EMC/EMI power line filter manufactured by Schaffner. It features a two-stage configuration designed for robust noise suppression in industrial environments. The component supports a rated current of 16 A and operates with a voltage rating of 530 VAC phase-to-phase. It functions within a frequency range of DC to 60 Hz. The unit has a maximum operating temperature of +100°C and a minimum of -40°C, with a physical length of 170 mm.
Feature Summary
- Two-stage filtering architecture for enhanced electromagnetic interference attenuation
- Designed specifically for three-phase delta connection configurations
- Capable of handling high continuous current loads up to 16 A
Applications
- Inverter systems
- Power drive systems
- Industrial machinery requiring EMI suppression
Procurement Notes
Verify the specific suffix codes against official Schaffner documentation to ensure correct terminal configuration and mounting style. Confirm that the 16 A current rating and 530 VAC voltage specifications align with the target circuit requirements before integration. Check for RoHS compliance status if environmental regulations apply to the end product.
Selection Notes
Select this model when a two-stage solution is required for three-phase delta networks. Ensure the application environment stays within the -40°C to +100°C operational temperature range. Verify that the physical dimensions fit the available enclosure space, noting the 170 mm length constraint.
Part Context
This component belongs to the FN 3287 series of slim-line power line filters. The series is engineered for compact installation in control cabinets where space is limited but high performance is necessary. It serves as a critical interface between power sources and sensitive electronic loads.
Replacement Considerations
Public confirmed substitute part numbers are not provided in the available documentation. Consult the manufacturer's cross-reference guide for compatible alternatives.
