FN3287-230-40-C26-R65

$654.41

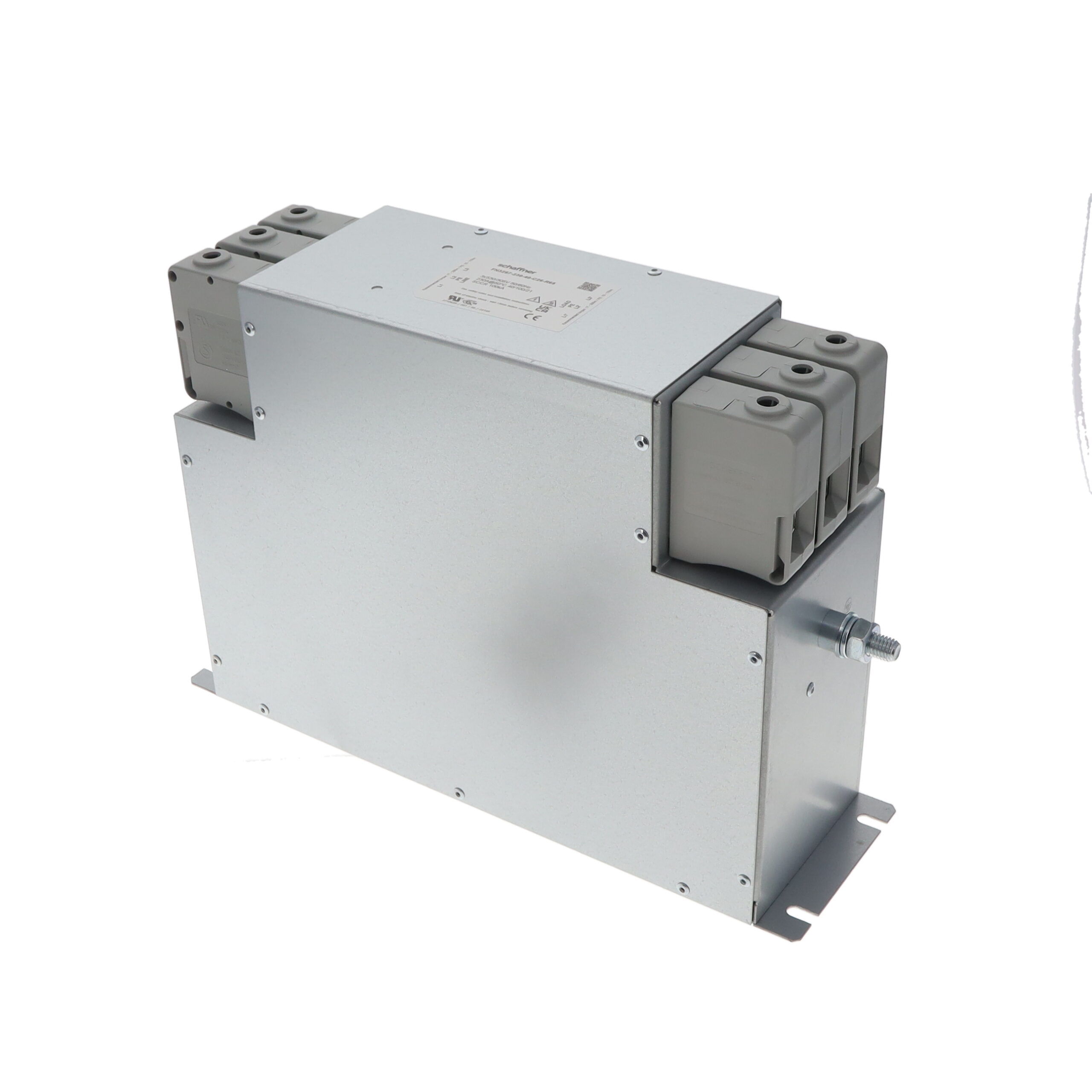

Description：LINE FILTER 230A CHASSIS MOUNT
Series：FN 3287
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:ea09920b4f13 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 230A CHASSIS MOUNT
Series：FN 3287
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：230 A
Frequency - Operating：DC ~ 60Hz
Applications：Inverters, Power Drive Systems
Approval Agency：CE, ENEC, UKCA, UR
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：305 V
Voltage - Rated AC (Phase to Phase)：530 V

Download product information

FN3287-230-40-C26-R65

Overview

The Schaffner FN3287-230-40-C26-R65 is a three-phase (Delta) EMC/RFI power line filter designed for inverter and power drive systems. It features a slim book-style chassis mount configuration with terminal block termination. The unit supports a rated current of 230 A at a voltage rating of 400 VAC, operating within a frequency range of 0 Hz to 60 Hz. Key electrical specifications include a leakage current of 5.9 mA and compliance with UL 60939-3 and IEC 60939-3 standards.

Feature Summary

Slim book-style design optimized for compact installation in inverter and power drive applications
Three-phase Delta configuration providing effective EMI/RFI suppression
Chassis mount construction with robust terminal block connections

Applications

Inverter systems
Power drive systems
Industrial machinery requiring three-phase filtering

Procurement Notes

Verify the specific suffix codes against official TE Connectivity/Schaffner documentation to ensure correct termination style and mounting hardware compatibility. Confirm that the 230 A current rating aligns with the system's continuous load requirements and that the 400 VAC rating matches the network voltage. Check for required certifications such as UL or CE based on regional deployment regulations.

Selection Notes

Select this model when high current capacity is required in a space-constrained environment. The slim profile distinguishes it from bulkier standard filters. Ensure the application utilizes a Delta configuration and requires terminal block connections rather than cable lugs. Validate thermal management needs given the high current handling capability.

Part Context

This component belongs to the FN3287 series, which is engineered specifically for demanding industrial environments. The series emphasizes minimal footprint while maintaining high attenuation performance. It serves as a critical interface between the power source and sensitive drive electronics to prevent electromagnetic interference propagation.

Replacement Considerations

Cross-reference part numbers such as FN3287-230-40-C33-R65 if different terminal block variants are needed. Verify physical dimensions and mounting hole patterns before substituting with other series models to ensure mechanical fit.
