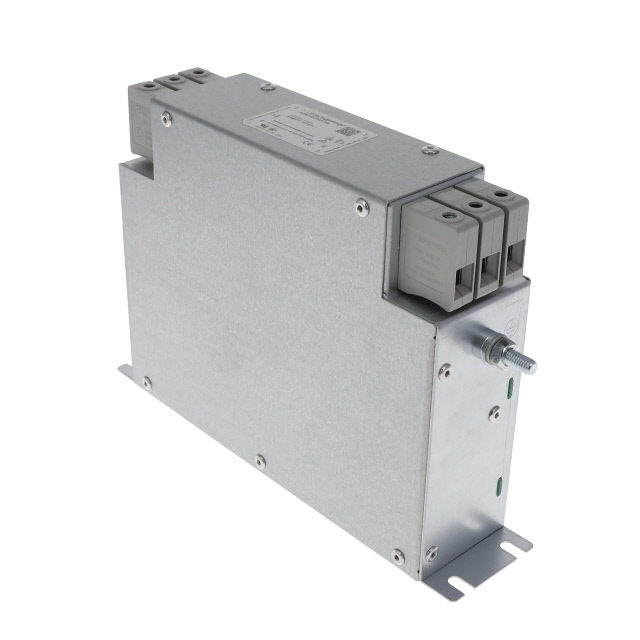

FN3287-40-33-C21-R65

$173.50

Description：LINE FILTER 530V/305VAC 40A CHAS
Series：FN 3287
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:7476189f73d1 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 530V/305VAC 40A CHAS
Series：FN 3287
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：530V, 305V
Current：40 A
Frequency - Operating：DC ~ 60Hz
Applications：Inverters, Power Drive Systems
Approval Agency：CE, ENEC, UR
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：305 V
Voltage - Rated AC (Phase to Phase)：530 V

Download product information

FN3287-40-33-C21-R65

Overview

The FN3287-40-33-C21-R65 is a three-phase EMC/RFI power line filter from the Schaffner FN3287 series. It features a chassis mount design with terminal block termination. The unit is rated for 40 A current and 530 VAC voltage at a working frequency of 0 Hz to 60 Hz. Physical dimensions are 173 mm in length, 45 mm in width, and 132 mm in height. It operates within a temperature range of -40 C to +100 C and complies with UL 60939-3 and IEC 60939-3 standards.

Feature Summary

Provides electromagnetic interference suppression for three-phase AC power lines
Designed for robust chassis mounting applications
Utilizes terminal block connections for secure electrical interfacing

Applications

Inverter systems
Power drive systems

Procurement Notes

Verify the specific part number FN3287-40-33-C21-R65 against official TE Connectivity / Schaffner documentation to confirm technical specifications. Ensure compatibility with system voltage, current requirements, and mounting constraints before procurement. Cross-reference compliance certifications such as UL and IEC standards relevant to your regional regulatory environment.

Selection Notes

Select this component based on its 40 A current rating and 530 VAC capability for three-phase applications. Consider the chassis mount style and terminal block termination when designing enclosure layouts. Verify that the operating temperature range meets environmental conditions and that physical dimensions fit available space.

Part Context

This component belongs to the FN3287 series of power line filters manufactured by TE Connectivity / Schaffner. The series is engineered for industrial EMC applications requiring reliable noise attenuation in three-phase power circuits. The specific model denotes a 40 A variant within this product family.
