FN3288-10-44-C17-R65

Overview

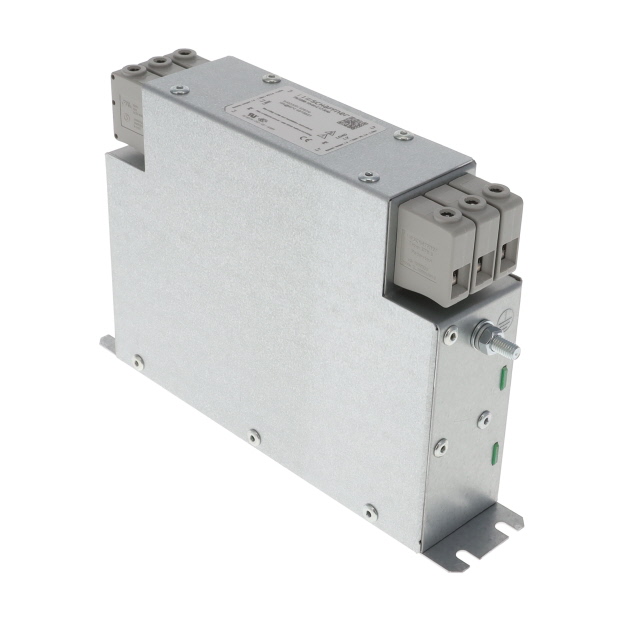

The Schaffner FN3288-10-44-C17-R65 is a three-phase EMC/RFI power line filter designed for chassis mounting. It features terminal block input and output connections with a Delta (3-wire + ground) configuration. The unit operates at a rated voltage of 530 VAC and supports a continuous current of 10 A within a frequency range of 0 Hz to 60 Hz. Physical dimensions are 226 mm in length, 65 mm in width, and 180 mm in height, weighing approximately 2.5 kg. It functions reliably between -40°C and +100°C.

Feature Summary

• Provides excellent EMI attenuation performance through an innovative filter topology.
• Features a slim book-style form factor allowing space-saving installation near drives or converters.
• Supports secure chassis mounting with terminal block termination for robust electrical connections.

Applications

• Industrial power supplies
• Battery chargers
• Energy-efficient systems

Procurement Notes

Verify the specific part number against official TE Connectivity/Schaffner documentation to confirm compatibility with your system requirements. Ensure that the chassis mounting style and terminal block interface match your existing infrastructure. Cross-reference the 10 A current rating and 530 VAC voltage specifications with your load calculations. Confirm compliance standards such as UL and IEC if required for your region. Always check the latest datasheet for any updates on mechanical dimensions or environmental ratings before finalizing procurement.

Selection Notes

Select this component when a compact, high-performance three-phase filter is needed for industrial environments. The slim design facilitates installation in confined spaces adjacent to变频器 or motor drives. Ensure the application requires a 10 A capacity and 530 VAC rating. Verify that chassis mounting and terminal block connections are suitable for the target assembly. Consider the operating temperature range of -40°C to +100°C for harsh environment suitability.

Part Context

This model belongs to the FN3288 series of power line filters manufactured by Schaffner EMC Inc., now part of TE Connectivity. The series is characterized by its thin profile and high attenuation capabilities, making it suitable for modern electronic equipment where space is limited. The FN3288 series typically includes various current ratings and connection options to accommodate diverse industrial and commercial power conditioning needs.

Replacement Considerations

Consult official Schaffner cross-reference guides for verified substitutes. Ensure any replacement maintains the same 3-phase configuration, 10 A rating, and 530 VAC specification. Verify mechanical compatibility regarding chassis mount dimensions and terminal block layout. Do not assume interchangeability based solely on series name without confirming electrical and physical parameters.

FAQ

What is the maximum leakage current for this filter?

Specific leakage current values for the FN3288-10-44-C17-R65 are not explicitly detailed in the provided public summary data; refer to the full datasheet for precise limits.

Does this filter support single-phase operation?

No, the FN3288-10-44-C17-R65 is specifically designed as a three-phase EMC/RFI filter.
