FN3288-10-44-C21-R65

$122.56

Description：LINE FILTER 530V/305VAC 10A CHAS
Series：FN 3288
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:fdbc8feccaa5 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 530V/305VAC 10A CHAS
Series：FN 3288
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：530V, 305V
Current：10:00 AM
Frequency - Operating：DC ~ 60Hz
Applications：Inverters, Power Drive Systems
Approval Agency：CE, ENEC, UR
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：305 V
Voltage - Rated AC (Phase to Phase)：530 V

Download product information

FN3288-10-44-C21-R65

Overview

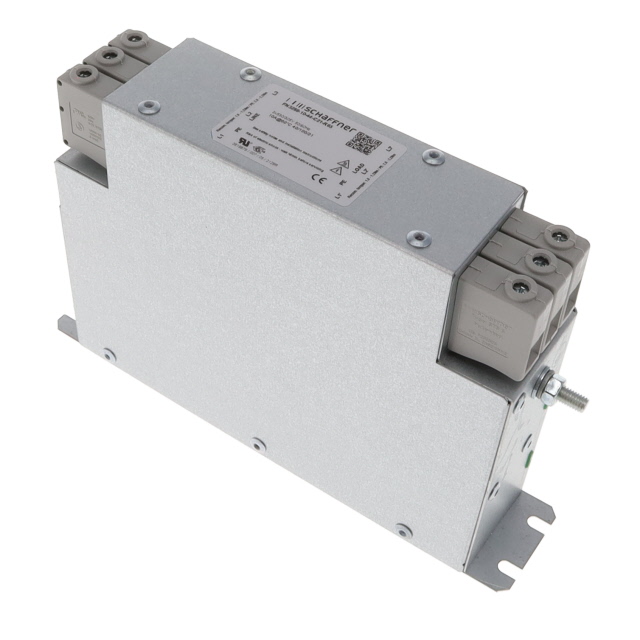

The Schaffner FN3288-10-44-C21-R65 is a three-phase EMC line filter designed for industrial power applications. It features a rated current of 10 A and operates at frequencies up to 60 Hz. The unit supports a maximum AC voltage of 530 V (phase-to-phase) and 305 V (phase-to-neutral). Constructed with terminal block connections, it utilizes a chassis mounting configuration suitable for space-constrained environments. The device functions within an operating temperature range of -40°C to 100°C.

Feature Summary

Book-style slim profile enables compact installation near inverters or motor drives
Innovative filter topology provides high EMI attenuation performance
Terminal block interface facilitates secure electrical connections

Applications

Inverter systems
Power drive systems
Industrial machinery

Procurement Notes

Verify the specific suffix codes against official datasheets to confirm internal component values and safety certifications. Ensure the selected variant matches the required leakage current limits and voltage ratings for the target application. Cross-reference manufacturer part numbers with distributor listings to confirm availability and compliance status before finalizing procurement orders.

Selection Notes

Select this model based on the 10 A current requirement and 530 VAC rating. The book-style form factor is critical for installations requiring proximity to heat-generating components like converters. Confirm that the terminal block termination style aligns with existing panel wiring infrastructure and mounting hardware specifications.

Part Context

This component belongs to the FN3288 series, which is characterized by its thin, book-shaped design optimized for space-saving integration. The series is manufactured by Schaffner EMC Inc., now part of TE Connectivity, focusing on high-performance electromagnetic interference suppression for demanding industrial power electronics environments.
