FN3288-100-35-C17-R65

Overview

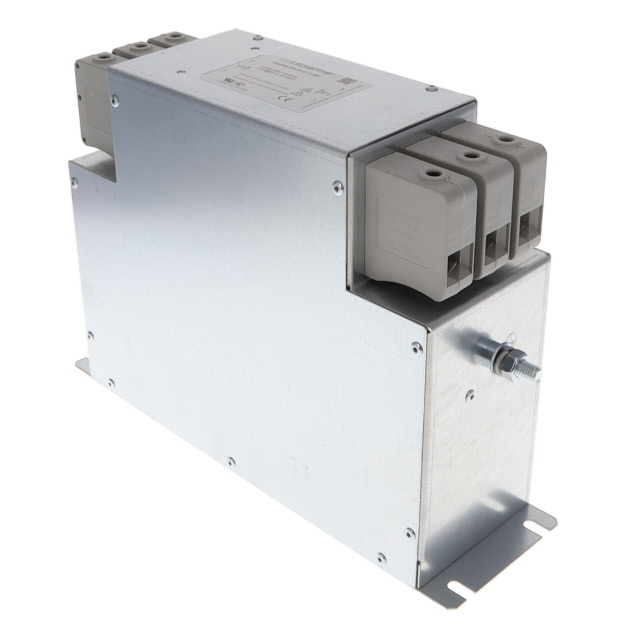

The Schaffner FN3288-100-35-C17-R65 is a three-phase EMC/EMI power line filter from the FN3288 series. It features a chassis mount configuration with terminal block termination. The unit supports a rated voltage of 480 VAC and a current rating of 100 A. Designed for operation between DC and 60 Hz, it utilizes a two-stage filtering topology. The component operates within a temperature range of -40°C to +100°C.

Feature Summary

• Book-style slim profile enables space-saving installation near drives or converters
• Two-stage topology provides high attenuation performance
• Chassis mount design facilitates secure integration in industrial enclosures

Applications

• Inverter systems
• Power drive systems
• Industrial motor control applications

Procurement Notes

Verify the specific suffix C17 against official datasheets to confirm terminal block orientation and pinout compatibility. Ensure the 100A current rating aligns with system requirements. Confirm that the 480VAC voltage specification matches the target network infrastructure before procurement.

Selection Notes

Select this model when high current capacity is required alongside compact form factor constraints. The book-style design allows placement close to noise sources. Verify that the terminal block connection method suits the existing wiring harness and panel layout requirements.

Part Context

This component belongs to the FN3288 series, which offers innovative filter topologies for superior EMI attenuation. The series is characterized by its thin, book-like shape, allowing flexible mounting options in tight spaces within industrial equipment and power electronics assemblies.

Replacement Considerations

Consult official substitution guides for equivalent current ratings. Cross-reference terminal configurations to ensure mechanical compatibility without redesigning the mounting interface.
