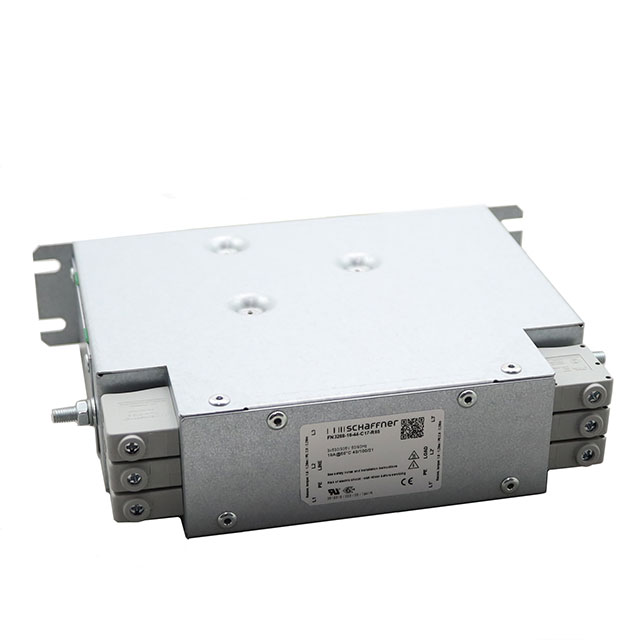

FN3288-16-44-C17-R65

$132.91

Description：LINE FILTER 530V/305VAC 16A CHAS
Series：FN 3288
Mfr：Schaffner EMC Inc.
Package：Box

SKU:fa08d4f4e6a9 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 530V/305VAC 16A CHAS
Series：FN 3288
Mfr：Schaffner EMC Inc.
Package：Box
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：530V, 305V
Current：16 A
Frequency - Operating：DC ~ 60Hz
Applications：Inverters, Power Drive Systems
Approval Agency：CE, ENEC, UR
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：305 V
Voltage - Rated AC (Phase to Phase)：530 V

Download product information

FN3288-16-44-C17-R65

Overview

The FN3288-16-44-C17-R65 is a three-phase EMC/RFI power line filter manufactured by Schaffner. It features a rated voltage of 530 VAC and a current rating of 16 A, operating within a frequency range of 0 Hz to 60 Hz. The unit utilizes terminal block termination for electrical connections and supports chassis mounting. Physical dimensions are approximately 164 mm in length, with an operational temperature range spanning from -40°C to +100°C.

Feature Summary

Provides two-stage attenuation for effective electromagnetic interference suppression
Designed for three-phase delta configurations
Utilizes terminal block termination for secure electrical connections

Applications

Industrial machinery power conditioning
Three-phase electronic equipment protection
Automotive device power regulation

Procurement Notes

Verify the specific suffix codes against official datasheets to ensure correct configuration. Confirm that the terminal block type matches the installation requirements. Check compliance certifications such as UL or IEC standards relevant to the target market. Ensure the thermal environment stays within the specified -40°C to +100°C range during operation.

Selection Notes

Select this model when a 16 A capacity is required for three-phase systems. Ensure the available space accommodates the chassis mount style and physical dimensions. Verify that the terminal block interface is compatible with existing wiring harnesses. Consider the leakage current specifications if sensitive loads are present.

Part Context

This component belongs to the FN3288 series of power line filters. The series is designed for robust EMI/RFI filtering in industrial environments. It shares common design principles with other models in the family but differs in current ratings and physical dimensions based on the specific part number suffix.

Replacement Considerations

Check for direct substitutes within the FN3288 series with matching current ratings. Verify compatibility with existing mounting hardware and terminal connections. Ensure replacement units meet the same voltage and frequency specifications.
