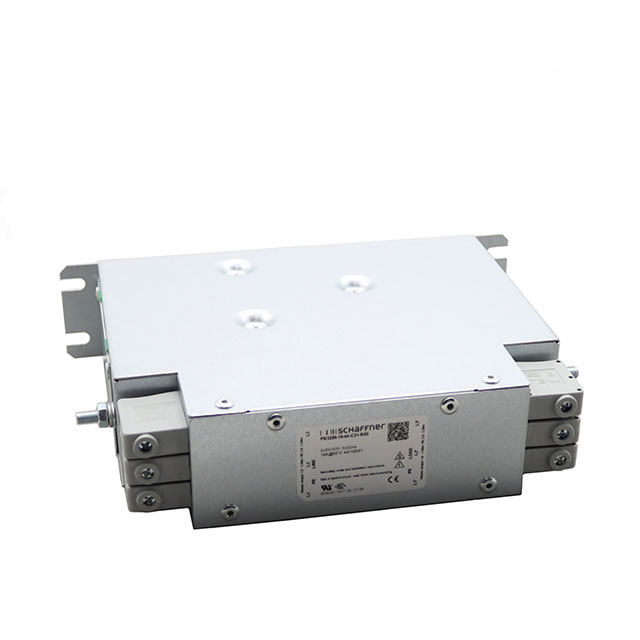

FN3288-16-44-C21-R65

$133.20

Description：LINE FILTER 530V/305VAC 16A CHAS
Series：FN 3288
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:05e1ec49c028 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 530V/305VAC 16A CHAS
Series：FN 3288
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：530V, 305V
Current：16 A
Frequency - Operating：DC ~ 60Hz
Applications：Inverters, Power Drive Systems
Approval Agency：CE, ENEC, UR
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：305 V
Voltage - Rated AC (Phase to Phase)：530 V

Download product information

FN3288-16-44-C21-R65

Overview

The FN3288-16-44-C21-R65 is a three-phase EMC/RFI power line filter manufactured by TE Connectivity / Schaffner. It features a chassis mount design with terminal block termination. The unit operates at frequencies from 0 Hz to 60 Hz and supports a voltage rating of 530 VAC. The current rating is specified as 16 A, with a maximum leakage current of 400 uA. Compliance standards include UL 60939-3 and IEC 60939-3.

Feature Summary

Provides two-stage attenuation for electromagnetic interference in three-phase systems
Utilizes book-style construction for compact chassis integration
Designed for low leakage current operation to ensure safety compliance

Applications

Industrial machinery power conditioning
Medical equipment power supplies
Telecommunications infrastructure filtering

Procurement Notes

Verify the specific suffix codes against official datasheets to confirm terminal block type and mounting hardware compatibility. Ensure the operating environment temperature range aligns with the component's rated limits. Confirm that the required leakage current specifications meet the safety standards of the final application system before procurement.

Selection Notes

Select this model when a three-phase solution with low leakage current is required for chassis-mounted installations. Compare the 16 A current rating against peak load requirements. Consider the terminal block interface for wiring convenience versus other connection types available in the series.

Part Context

This component belongs to the FN3288 series of power line filters. The series offers various current ratings and configurations for three-phase applications. It is part of TE Connectivity's portfolio of electromagnetic compatibility solutions designed for industrial and commercial power distribution systems.

Replacement Considerations

Check for exact pinout and dimension matches when substituting. Verify that alternative models maintain the same leakage current and voltage ratings. Ensure the replacement part holds identical regulatory certifications for the target market.
