Product Detailed Parameters
- Description：LINE FILTER 530/305VAC 160A CHAS
- Series：FN 3288
- Mfr：Schaffner EMC Inc.
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：530V, 305V
- Current：160 A
- Frequency - Operating：DC ~ 60Hz
- Applications：Inverters, Power Drive Systems
- Approval Agency：CE, ENEC, UR
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：305 V
- Voltage - Rated AC (Phase to Phase)：530 V
Download product information
Overview

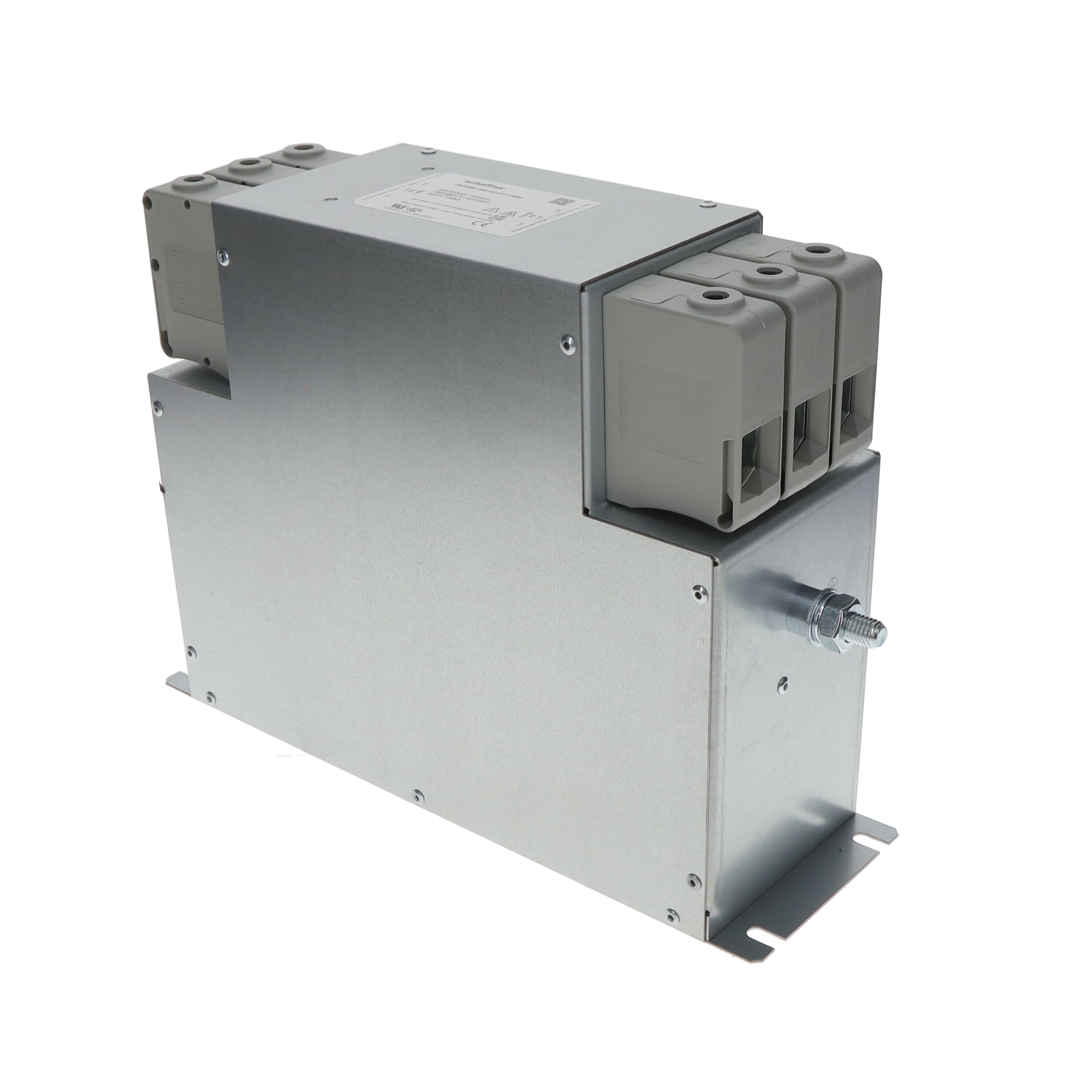

The Schaffner FN3288-160-40-C17-R65 is a three-phase EMC/EMI power line filter designed for chassis mounting. It features a rated current of 160 A and operates at frequencies from DC to 60 Hz. The unit supports AC voltages up to 530 V phase-to-phase and 305 V phase-to-neutral. Termination is achieved via terminal blocks on both input and output sides, with a delta wiring configuration including ground. The filter utilizes a two-stage design to provide attenuation in demanding industrial environments.
Feature Summary
- Two-stage filtering architecture for enhanced electromagnetic interference suppression
- Terminal block termination for secure electrical connections
- Chassis mount construction for stable installation
- Delta wiring configuration with integrated grounding
Applications
- Inverter systems
- Power drive systems
- Industrial machinery
Procurement Notes
Verify the specific suffix codes against the manufacturer datasheet to ensure correct voltage ratings and termination styles. Confirm that the terminal block specifications match the existing cabling infrastructure. Check compliance documentation such as UL and IEC standards for the target market. Ensure the physical dimensions fit the designated chassis space before ordering.
Selection Notes
Select this component when high current capacity of 160 A is required for three-phase applications. The two-stage design is suitable for environments with significant noise. Verify that the operating temperature range of -40°C to 100°C meets system requirements. Ensure the chassis mount style aligns with the mechanical assembly constraints.
Part Context
This part belongs to the FN3288 series of book-style EMC filters by TE Connectivity Schaffner. The series is engineered for general-purpose filtering in industrial settings. The model number indicates specific current, voltage, and termination characteristics within the broader product family.
Replacement Considerations
Cross-reference with other FN3288 variants for different current ratings or termination types. Verify compatibility with existing mounting hardware and cable sizes. Ensure substitute parts maintain the same two-stage filtering performance and safety certifications.
