FN3288-230-40-C17-R65

$662.20

Description：LINE FILTER 230A CHASSIS MOUNT
Series：FN 3288
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:eb0ad273df62 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 230A CHASSIS MOUNT
Series：FN 3288
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：230 A
Frequency - Operating：DC ~ 60Hz
Applications：Inverters, Power Drive Systems
Approval Agency：CE, ENEC, UKCA, UR
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：305 V
Voltage - Rated AC (Phase to Phase)：530 V

Download product information

FN3288-230-40-C17-R65

Overview

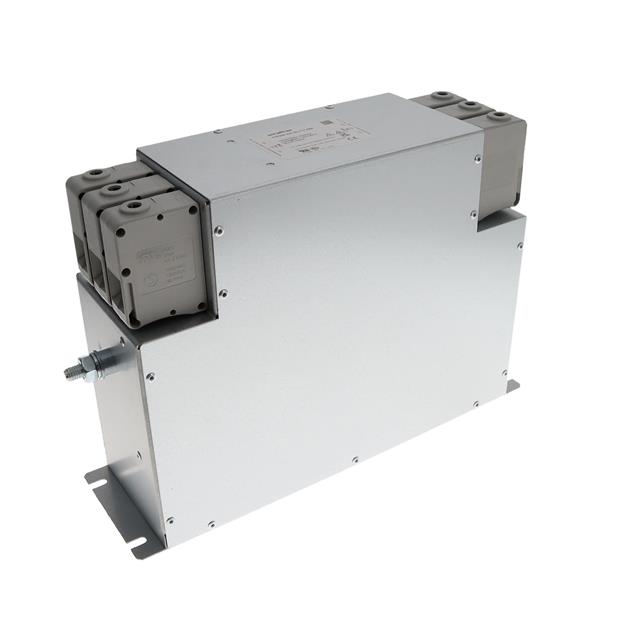

The Schaffner FN3288-230-40-C17-R65 is a three-phase delta EMC line filter rated for 230 A and 530 V AC. It operates at frequencies from DC to 60 Hz with a two-stage configuration. The unit utilizes terminal block termination and chassis mounting. Operating temperature ranges from -40°C to 100°C. Leakage current is specified at 100 uA. The component features a thin book shape designed for space-saving installation near inverters or motor drives.

Feature Summary

Provides excellent EMI attenuation performance through an innovative filter topology.
Thin book shape allows convenient and space-saving installation close to frequency converters, converters, or motor drives.

Applications

Inverters
Power drive systems

Procurement Notes

Verify the specific suffix C17 against project requirements, as it denotes particular certification or construction details distinct from other variants like C35. Confirm that the 230 A rating aligns with the load profile. Ensure the terminal block interface matches the existing busbar or cable setup. Validate the chassis mount dimensions against the enclosure design. Check for updated compliance declarations such as RoHS3 status before finalizing the order.

Selection Notes

Select this model when high current capacity of 230 A is required in a compact form factor. The two-stage design offers superior filtering compared to single-stage alternatives. Consider the thin book shape if space constraints exist near the power electronics. Verify that the 530 V AC rating suits the system voltage. Ensure the operating temperature range covers the environmental conditions.

Part Context

This component belongs to the FN3288 series, which includes various ratings up to higher currents. The series is characterized by its thin book shape and high-performance EMI suppression. Other models in the family share similar physical dimensions but differ in current ratings and specific certification suffixes. The series is widely used in industrial power applications requiring robust noise reduction.
