FN3288-230-40-C21-R65

$663.71

Description：LINE FILTER 230A CHASSIS MOUNT
Series：FN 3288
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:168de99ea860 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 230A CHASSIS MOUNT
Series：FN 3288
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：230 A
Frequency - Operating：DC ~ 60Hz
Applications：Inverters, Power Drive Systems
Approval Agency：CE, ENEC, UKCA, UR
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：305 V
Voltage - Rated AC (Phase to Phase)：530 V

Download product information

FN3288-230-40-C21-R65

Overview

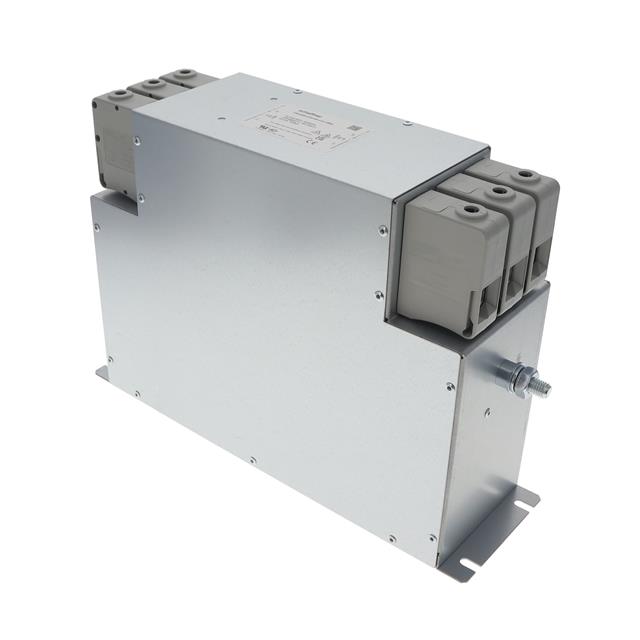

The Schaffner FN3288-230-40-C21-R65 is a three-phase slim book-style EMC/RFI power line filter designed for inverter and power drive systems. It features a rated voltage of 530 VAC (phase-to-phase) and 305 VAC (phase-to-neutral), with a current rating of 230 A. The unit operates within a frequency range of DC to 60 Hz and utilizes terminal block connections for chassis mounting. It complies with UL 60939-3 and IEC 60939-3 standards, ensuring reliable performance in industrial environments.

Feature Summary

Slim book-style design optimized for space-constrained applications
High current capacity suitable for demanding power drive systems
Terminal block termination for secure electrical connections

Applications

Inverter systems
Power drive systems
Industrial power supplies

Procurement Notes

Verify the specific suffix codes against the official datasheet to ensure correct configuration. Confirm that the terminal block type matches your wiring requirements. Check compliance documentation for target market regulations. Ensure mechanical dimensions fit the intended chassis mount location. Validate thermal management needs for continuous operation at rated current.

Selection Notes

Select this model when high current handling is required in a compact form factor. Consider the slim profile for dense panel layouts. Verify compatibility with 530 VAC three-phase networks. Ensure the terminal block interface suits existing cabling infrastructure. Evaluate thermal dissipation capabilities under full load conditions.

Part Context

This component belongs to the FN3288 series, which offers slim book-style EMC filters. The series is engineered for inverter and power drive applications. It provides effective noise suppression while maintaining a small footprint. The design supports high current ratings across various configurations.

Replacement Considerations

Consult the official Schaffner cross-reference guide for verified substitutes. Ensure replacement parts match the 230 A current rating and 530 VAC voltage specification. Verify identical terminal block types and mounting styles. Confirm compliance with the same regulatory standards.
