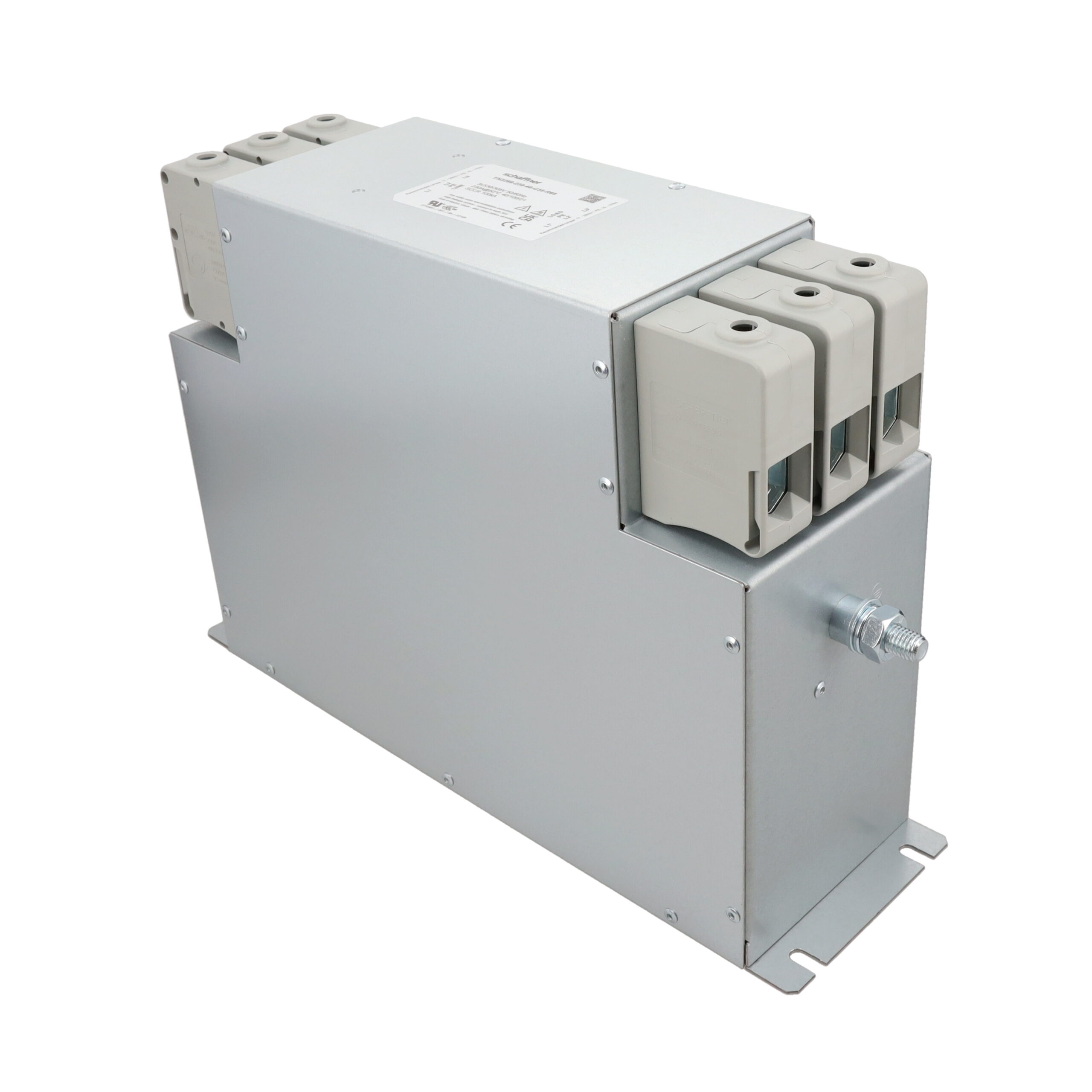

FN3288-230-40-C35-R65

$659.06

Description：LINE FILTER 230A CHASSIS MOUNT
Series：FN 3288
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:5043bfff0483 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 230A CHASSIS MOUNT
Series：FN 3288
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：230 A
Frequency - Operating：DC ~ 60Hz
Applications：Inverters, Power Drive Systems
Approval Agency：CE, ENEC, UKCA, UR
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：305 V
Voltage - Rated AC (Phase to Phase)：530 V

Download product information

FN3288-230-40-C35-R65

Overview

The Schaffner FN3288-230-40-C35-R65 is a three-phase EMC line filter rated for 230 A and 530 VAC. It operates at frequencies up to 60 Hz and utilizes terminal block connections for both input and output. Designed for chassis mounting, this component features a delta configuration with three wires plus ground. The unit employs a two-stage filtering topology within a slim book-style enclosure, ensuring efficient electromagnetic interference attenuation in industrial power systems.

Feature Summary

Innovative filter topology providing high EMI attenuation performance
Slim book-style design enabling space-saving installation near drives
Two-stage filtering configuration for enhanced noise suppression

Applications

Inverter systems
Power drive systems
Converter installations

Procurement Notes

Verify the complete part number including suffixes against official TE Connectivity Schaffner documentation to ensure correct voltage, current, and termination specifications. Confirm RoHS compliance status and specific certification requirements such as CSA, ENEC, or UR before procurement. Cross-reference datasheet parameters to match application electrical constraints accurately.

Selection Notes

Select this model for applications requiring high current handling capacity of 230 A in three-phase configurations. The chassis mount style and terminal block interface suit industrial panel integration. Ensure physical dimensions accommodate the slim book form factor near sensitive equipment like inverters or motor drives where space optimization is critical.

Part Context

This component belongs to the FN3288 series manufactured by TE Connectivity Schaffner. The series is characterized by its slim book-style construction and advanced filtering topology. It serves as a robust solution for managing electromagnetic interference in heavy-duty industrial power electronics environments.

Replacement Considerations

FN3288-25-33-C17-R65 and FN3288-25-33-C35-R65 are listed as manufacturer recommended substitutes for related models in the series. Verify electrical ratings and mechanical compatibility before substitution.
